Pockels cell test

We used Thorlabs CPS532 diode laser, plugging it directly on the fiber coupled on LGSW connectors panel.


Data recorded is stored on DX-LGSW

Yellow pupil

7000 cts @ 1us, 11step sweep


['/home/argos/snapshots/measures/DX/20140508/20140508_230510',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230537',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230603',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230629',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230655',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230721',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230747',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230814',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230840',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230906',
 '/home/argos/snapshots/measures/DX/20140508/20140508_230933']

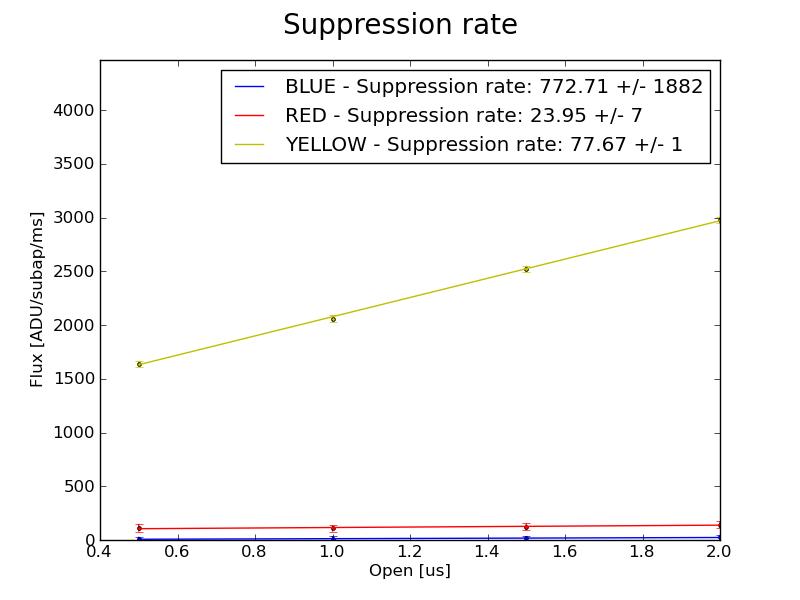

2400 cts @ 1us, 4 steps sweep


['/home/argos/snapshots/measures/DX/20140508/20140508_231057',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231124',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231151',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231217']

Red pupil

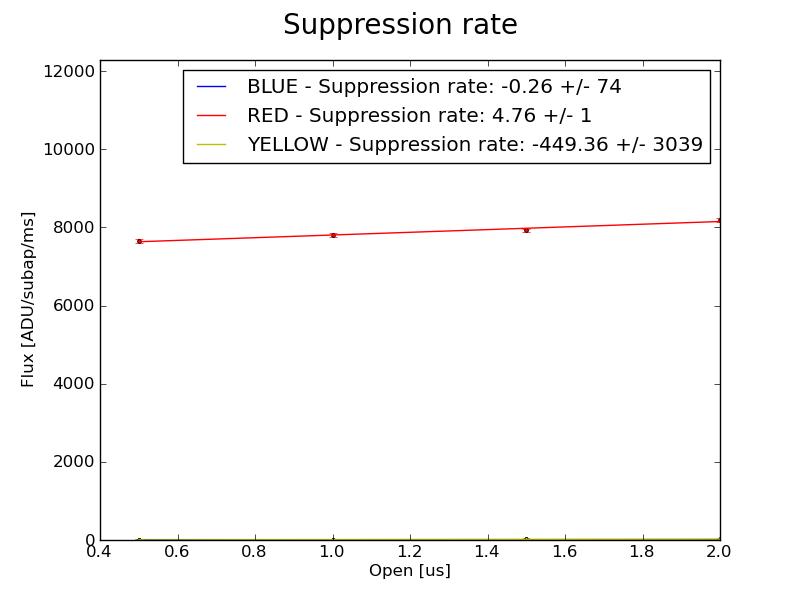

8000 cts @ 1us, 4 steps


['/home/argos/snapshots/measures/DX/20140508/20140508_231623',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231650',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231717',
 '/home/argos/snapshots/measures/DX/20140508/20140508_231745']

6000 cts @ 1us, 11 steps


['/home/argos/snapshots/measures/DX/20140508/20140508_232036',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232102',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232130',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232157',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232223',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232250',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232316',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232343',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232409',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232435',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232501']

Blue pupil

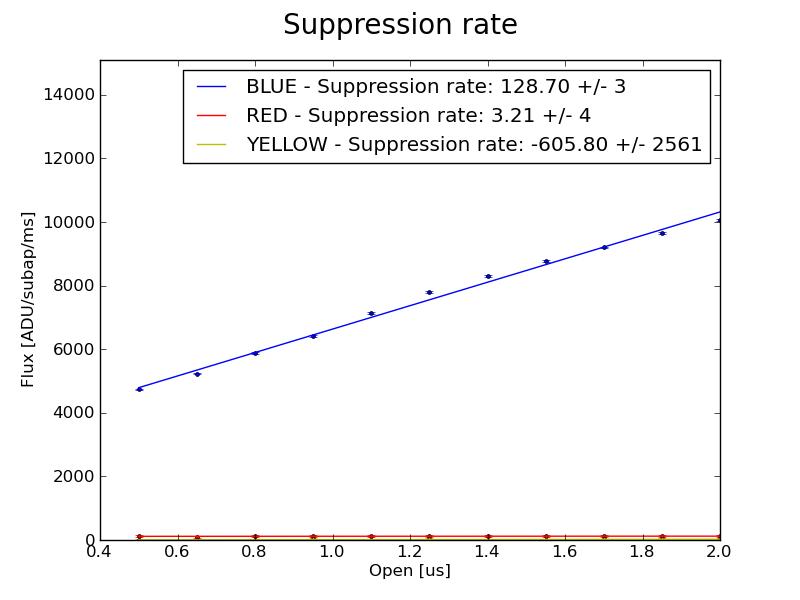

6000 cts @ 1us, 11 steps


['/home/argos/snapshots/measures/DX/20140508/20140508_233000',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233027',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233054',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233119',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233146',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233213',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233239',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233306',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233332',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233359',
 '/home/argos/snapshots/measures/DX/20140508/20140508_233426']

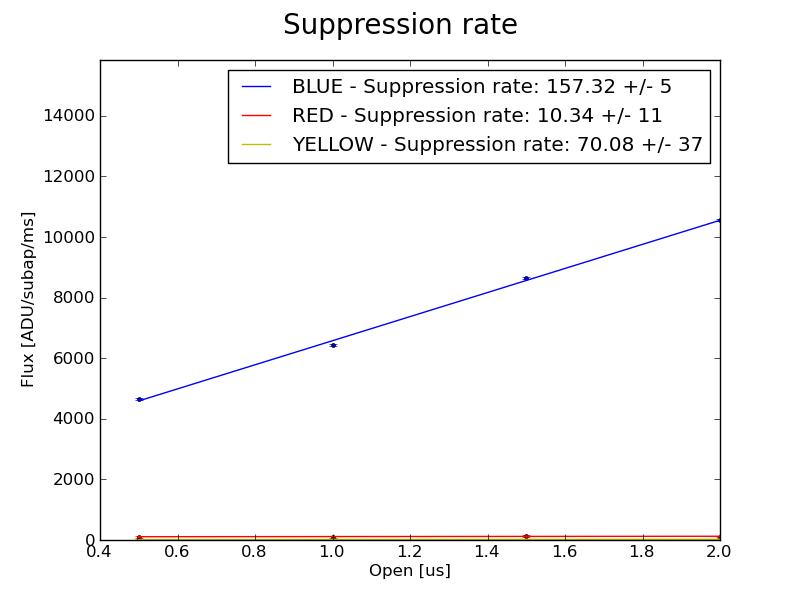

6000 cts @ 1us, 4 steps


['/home/argos/snapshots/measures/DX/20140508/20140508_232756',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232824',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232851',
 '/home/argos/snapshots/measures/DX/20140508/20140508_232917']
