We center the yellow pupil we close the ARGOS loop on yellow pupil just using 10 modes, with different illuminations:

TN Notes Res [nm wf] No TT Res [nm wf]
20140518_024430 ARGOS yellow CL, 10 modes, gTT=0.3, gHO=0.1, 4500 ADU 224 113
20140518_024458 " 225 113
20140518_024524 ARGOS OL, 4500 ADU 332 118
20140518_024553 " 337 140
20140518_024632 ARGOS OL, 1500 ADU 397 216
20140518_024652 " 376 217
20140518_024731 ARGOS yellow CL, 10 modes, gTT=0.3, gHO=0.1, 1500 ADU 353 216
20140518_024752 " 351 218
20140518_024839 ARGOS yellow CL, 10 modes, gTT=0.3, gHO=0.1, 3000 ADU 265 141
20140518_024903 " 260 142
20140518_024932 ARGOS OL, 3000 ADU 314 140
20140518_024952 " 311 139

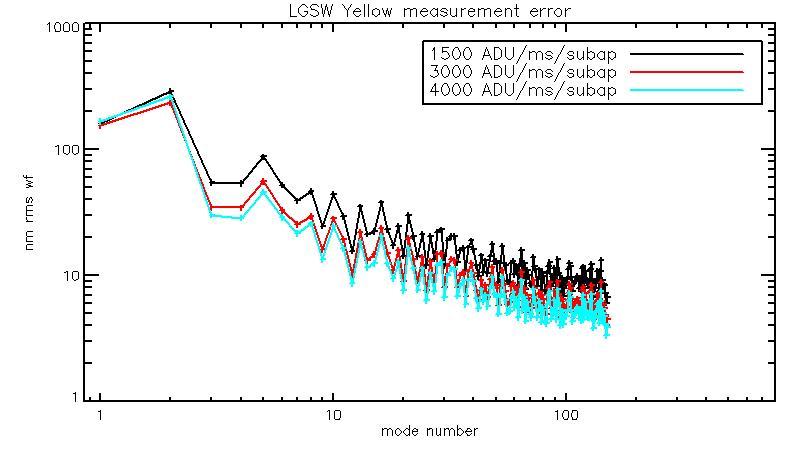

Plot of the Open Loop data:


Now we try again closing the loop with 150 modes:

TN Notes Res [nm wf] No TT Res [nm wf]
20140518_025209 ARGOS yellow CL, 150 modes, gTT=0.3, gHO=0.1, 3000 ADU 198 115
20140518_025231 " 200 116
20140518_025304 ARGOS yellow CL, 150 modes, gTT=0.3, gHO=0.1, 1500 ADU 277 178
20140518_025327 " 274 176
20140518_025353 ARGOS yellow CL, 150 modes, gTT=0.3, gHO=0.1, 4000 ADU 191 99
20140518_025414 " 213 100
