TT w/ Pyr Bin4 test

8:00: we start with PyrWfs, setup as Bin4, mag 15.

  • CCD47 is not set to Bin16 during the preset

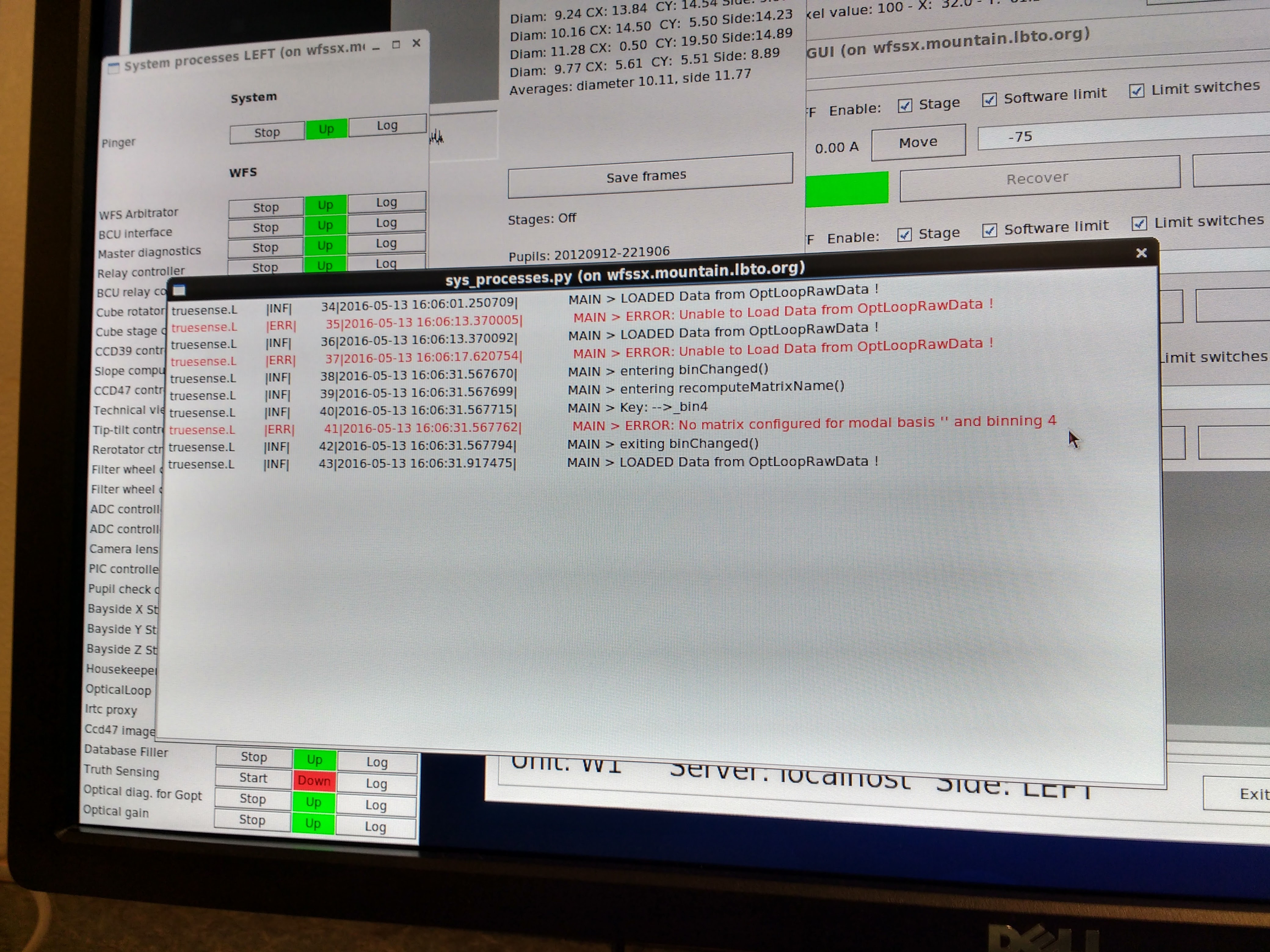

  • TS at Bin4 is missing the KL basis at first startup:


SX HEXA 3.37 0.74 -0.88 123 -202
SX BOARD -74.4 -51.9 45.0
9.30: we close the loop with 1" disturb:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Plot
20160513_162813 0.7,0.5,0.4 T 99.7492 73.0705 20151212_233600 -1 T F 20160513_162813-20160513_163855_modalplot.png
20160513_162851 0.7,0.5,0.4 T 93.7699 72.0355 20151212_233600 -1 T F
20160513_162919 0.7,0.5,0.4 T 88.1478 73.9062 20151212_233600 -1 T F
20160513_163855 2.5,0.5,0.4 T 69.2858 75.5019 20151212_233600 -1 T F
9:40: we have too much light in the dome, people is working on LUCI platform and need ligths on. We switch to mag 10, Pyr setup as Bin2, 990Hz. LUCI rotator at 341deg.


Jitter to PyrWfs board IM

10:00: we try to acquire jitter to FLAO stages IM, to do this we close on Pyr + LGSW, we wait for TS to converge, we disable LO and HO modes and we run the acquisition procedure.

  • Jitter to board IM: 20160513_171800

We test the loop, it seems to work, we first tried a single measurement and we applied it by hand on the FLAO HW GUI. The second measurement converged.

  • It measures LGSW jitter offset and it tries to null the average of the 3 measurements by moving the FLAO stages. To do this the loop needs the FLAO to be locked on the on-axis source, otherwise the FLAO stages just drift aways since any feedback of the actuation is seen by the LGSW jitter.

QC flux loss evaluation

10:30: we have back dark dome after kicking out LUCI guys. We start to perform QC faint end tests.

Preset sent for mag 15, Pyr BIN4 50Hz as TS, QC running at 100Hz.

We move the rotator to 0deg. TTM converges to [1.56; 3.63]V, FW1 to 90-10. Lamp at 54 steps:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_163938 2.75,0.5,0.4 T 64.3378 76.1371 20151212_233600 -1 T F
20160513_180702 0.1,0.4,0.3 T 1352.13 53.5955 20160312_032600 -1 T F
20160513_180720 0.1,0.4,0.3 T 1441.22 55.0594 20160312_032600 -1 T F
20160513_180737 0.1,0.4,0.3 T 1338.96 54.1791 20160312_032600 -1 T F
Then we pause the NGS loop, we disable TS and we put in the silver mirror on FW1. These measurements can be used to evaluate the reflectivity ratio between 90-10 and silver mirror:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_181200 0.1, 0, 0 T 1094.57 50.8069 20160312_032600 -1 T F
Then we put back 90-10, we measure about 59k total counts/s on QC:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_181823 0.2,0.1,0.05 T 1580.99 35.9393 20160312_032600 -1 T F
20160513_181909 0.2,0.1,0.05 T 1604.46 36.0259 20160312_032600 -1 T F
20160513_182010 0.2,0.1,0.05 T 1658.96 36.8465 20160312_032600 -1 T F
20160513_182543 0.1,0.1,0.05 T 1993.1 31.9579 20160312_032600 -1 T F
20160513_182601 0.1,0.1,0.05 T 1893.59 31.567 20160312_032600 -1 T F
We pause again NGS and we put in the 600-1000 dichroic on FW1. We measure a mag = 14.6 that coincides with a total of 481k photons/s:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_183040 0, 0, 0 T 931.4 28.5373 20160312_032600 -1 T F
20160513_183053 0, 0, 0 T 865.242 28.2696 20160312_032600 -1 T F
20160513_183115 0, 0, 0 T 864.509 28.4343 20160312_032600 -1 T F
In the QC measurements we got a std of about 8k counts/s over an average value of 56k counts/s. We try to defocus the source to check if this can be due to the jitter of the quasi-dl source:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_191342 0.1,0.1,0.05 T 1833.63 31.6548 20160312_032600 -1 T F Z=52mm, quasi-dl
20160513_191726 0.1,0.1,0.05 T 1052.9 30.0917 20160312_032600 -1 T F Z=47mm, 0.5"
20160513_191920 0.1,0.1,0.05 T 536.413 30.0013 20160312_032600 -1 T F Z=42mm, 1.0"
20160513_192108 0,0.1,0.05 T 425.743 60.4001 20160312_032600 -1 T F Z=37mm, 1.5"
20160513_192252 0,0.1,0.05 T 304.532 64.0844 20160312_032600 -1 T F Z=32mm, 2.0"
20160513_192359 0,0.1,0.05 T 241.768 65.6409 20160312_032600 -1 T F Z=27mm, 2.5"
20160513_192544 0,0.1,0.05 T 4357.88 89.4759 20160312_032600 -1 T F Aperture wheel closed
20160513_193010 0,0.1,0.05 T 186.683 81.8019 20160312_032600 -1 T F silver mirror, Z=27mm
20160513_193241 0.2,0.1,0.05 T 1195.8 39.268 20160312_032600 -1 T F silver mirror, Z=52mm

PyrWfs or QC?

13:00: we check the lamp magnitude that is equivalent to a mag 17: 45 steps. We close on Pyr Bin4 100Hz. Disturb = 1".

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_200425 0.2,0.1,0.05 T 300.374 218.184 20151212_233600 -1 T F
20160513_200859 0.2,0.1,0.05 T 278.246 234.633 20151212_233600 -1 T F
20160513_200959 0.8,0.5,0.4 T 213.872 103.726 20151212_233600 -1 T F
20160513_201016 0.8,0.5,0.4 T 233.748 110.5 20151212_233600 -1 T F
Then we set the jitter gain to 0.001 and we measure the TT residual from jitter std:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_201236 0.8,0.5,0.4 T 267.324 65.6615 20151212_233600 -1 T F Pyr, mag17
20160513_201257 0.8,0.5,0.4 T 332.022 67.2466 20151212_233600 -1 T F
20160513_201317 0.8,0.5,0.4 T 365.661 68.6928 20151212_233600 -1 T F
20160513_201504 0.8,0.5,0.4 T 212.153 72.5479 20151212_233600 -1 T F
20160513_201516 0.8,0.5,0.4 T 217.593 72.2327 20151212_233600 -1 T F
20160513_201528 0.8,0.5,0.4 T 207.471 72.1761 20151212_233600 -1 T F
We measure an average std of 60mas.

We set QC, same source:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_202146 0.1,0.5,0.4 T 1184.21 64.1419 20160312_032600 -1 T F QC, mag17
20160513_202159 0.1,0.5,0.4 T 1197.57 64.5439 20160312_032600 -1 T F
20160513_202211 0.1,0.5,0.4 T 1187.35 64.1862 20160312_032600 -1 T F
20160513_202332 0.1,0.5,0.4 T 1162.74 63.9766 20160312_032600 -1 T F
20160513_202354 0.1,0.5,0.4 T 1210.1 64.6899 20160312_032600 -1 T F
20160513_202419 0.1,0.5,0.4 T 1285.58 64.2661 20160312_032600 -1 T F
We measure a std of 72mas.

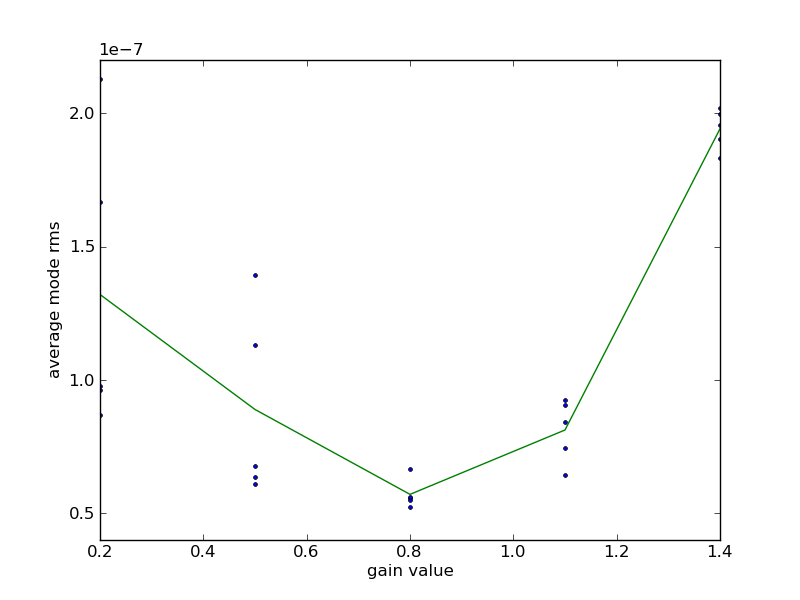

We try to rise the QC gain to 0.26 (output of autogain):

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_203203 0.26,0.5,0.4 T 1084.5 66.3734 20160312_032600 -1 T F QC, mag17
20160513_203232 0.26,0.5,0.4 T 1106.66 66.2604 20160312_032600 -1 T F
20160513_203254 0.26,0.5,0.4 T 1072.39 66.3041 20160312_032600 -1 T F
20160513_203326 0.26,0.5,0.4 T 1221.3 66.5767 20160312_032600 -1 T F
20160513_203351 0.26,0.5,0.4 T 1105.92 65.9049 20160312_032600 -1 T F
20160513_203403 0.26,0.5,0.4 T 1135.09 65.6638 20160312_032600 -1 T F
20160513_204435 0.4,0.5,0.4 T 1145.53 68.164 20160312_032600 -1 T F
Then we also check other magnitudes:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Notes
20160513_213125 0.26,0.4,0.3 T 847.854 69.9788 20160312_032600 -1 T F QC, mag16
20160513_213139 0.26,0.4,0.3 T 860.447 70.0065 20160312_032600 -1 T F
20160513_213150 0.26,0.4,0.3 T 827.142 69.9875 20160312_032600 -1 T F
20160513_213207 0.26,0.4,0.3 T 812.212 70.0752 20160312_032600 -1 T F
20160513_214932 0.26,0.4,0.3 T 741.638 70.2693 20160312_032600 -1 T F QC, mag15
20160513_214946 0.26,0.4,0.3 T 790.476 70.7906 20160312_032600 -1 T F
20160513_214957 0.26,0.4,0.3 T 743.571 70.4863 20160312_032600 -1 T F
20160513_215008 0.26,0.4,0.3 T 740.96 70.9243 20160312_032600 -1 T F
20160513_215415 0.8,0.4,0.3 T 128.06 69.6523 20151212_233600 -1 T F Pyr, mag15
20160513_215427 0.8,0.4,0.3 T 121.724 69.6108 20151212_233600 -1 T F
20160513_215437 0.8,0.4,0.3 T 126.225 69.6644 20151212_233600 -1 T F
20160513_215448 0.8,0.4,0.3 T 116.43 69.6602 20151212_233600 -1 T F
20160513_220435 0.8,0.4,0.3 T 123.017 70.2392 20151212_233600 -1 T F Pyr, mag16
20160513_220446 0.8,0.4,0.3 T 124.95 70.3318 20151212_233600 -1 T F
20160513_220505 0.8,0.4,0.3 T 108.021 70.0573 20151212_233600 -1 T F
20160513_220524 0.8,0.4,0.3 T 131.137 70.28 20151212_233600 -1 T F
20160513_221100 0.8,0.4,0.3 T 117.601 68.8452 20151212_233600 -1 T F Pyr, mag14
20160513_221110 0.8,0.4,0.3 T 89.9643 68.621 20151212_233600 -1 T F
20160513_221123 0.8,0.4,0.3 T 352.482 73.4264 20151212_233600 -1 T F
20160513_221133 0.8,0.4,0.3 T 123.167 68.9836 20151212_233600 -1 T F
20160513_221145 0.8,0.4,0.3 T 95.424 69.2554 20151212_233600 -1 T F
20160513_221738 0.8,0.4,0.3 T 44.202 70.4151 20151212_233400 -1 T F Pyr, mag13
20160513_221750 0.8,0.4,0.3 T 46.4947 70.3203 20151212_233400 -1 T F
20160513_221802 0.8,0.4,0.3 T 38.8151 70.1346 20151212_233400 -1 T F
20160513_221816 0.8,0.4,0.3 T 41.6387 70.2719 20151212_233400 -1 T F

  • We overlooked the fact that QC was not updating the integration time basing on the NGS magnitude. During NGS acquisition QC is set by default to 100Hz (value can be changed in QC .cfg file). Then when closing the loop the QC counts are translated analitically in equivalent NGS magnitude and the integration time is updated. To do this the QC requires a getSummary to lgsw controller. If this stacks (mutex pbl? too many resqusts? it is noticeable because the discotheque freezes) the QC integration time is always kept to 10ms...
