Hip56107

20:15: spot on PatCams we sweep the focus:

TN	Notes	Plot (Threshold)
'20150501_031805', '20150501_031908'	Focus Stage sweep, best is at -60k
'20150501_032312', '20150501_032414'	LBCSweep

The LM1 probe detects a strong temperature gradient over the 2 surfaces. We go to -160k with focus and we turn the corrector. ùwe added to the corrector sweep a feature that moves the focus stage to keep the spot broad.

TN	Notes	Gauss2Dfit plot	QFitsView plot	Plot (Threshold)
'20150501_032421'	-140k	sweep fail
'20150501_032513','20150501_032626'	LAN at -140k, LBC sweep
'20150501_033204','20150501_033316'	focus sweep, corrector at 500, best at -60k Sweep movie: 20150501_033204_FocusSweep.mp4

LM1 has a delta temperature of 0.5°C above nominal value

we move the focus stage to -10k and we sweep the corrector:

TN	Gauss2Dfit plot	QFitsViewPlot	Plot (Threshold)
'20150501_033814','20150501_033930'

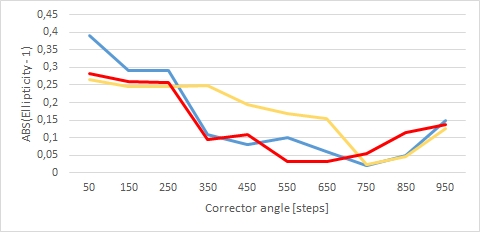

The focus optimization when the corrector is sweeped is not optimal, we calibrate it by hand:

Corr	Focus
950	-40k
750	-25k
550	-10k
350	0
150	10k

We put the focus stage at -130k and the corrector to 600 steps.

We send a new preset to center the star on PYR

Note: to work w/o BCU47 just type on wfsdx: enable_nobcu47_mode

TN	Notes
20150501_045715
...
20150501_071454

TN	AO rec	LAN focus	LM1 phi	LM1 theta	LAN state	Bex B	Bex R	Bex Y	LAS state	JCL	PM B	PM R	PM Y	PCL	LGSW state	M2 hex	Alt	M3	Notes
20150501_045715	20150429_110600	-135000	110.424	12.4981	R2O	128500	124000	152000	R2O	F	768,514	473,663	270,722	F	ACQ	-4.24167,-3.48615,2.41667,-138.765,-235.125,0.0179523	81.0764	-757.974,580.081, -0,-25.9002
20150501_045825	20150429_110600	-135000	116.109	7.95335	R2O	128500	124000	152000	R2O	F	768,514	473,663	270,722	F	ACQ	-4.23784,-3.47719,2.40717,-139.058,-234.638,0.00362782	80.8314	-757.974,580.081, -0,-25.9002
20150501_045935	NA	-135000	116.109	7.95335	R2O	128500	124000	152000	R2O	T	768,514	473,663	270,722	F	ACQ	NA	NA	NA
20150501_050053	20150429_110600	-135000	118.733	6.43843	R2O	128500	124000	152000	R2O	T	768,514	467,663	270,724	T	ACQ	-4.31391,-3.57856,2.36493,-127.097,-242.333,0.0425389	80.3117	-758.067,579.919, -0,-25.9002
20150501_050203	20150429_110600	-135000	118.733	6.43843	R2O	128500	124000	152000	R2O	T	768,516	467,663	274,725	T	ACQ	-4.38815,-3.60291,2.34621,-123.91,-249.983,0.0141602	80.0656	-757.974,580.081, -0,-25.9002
20150501_050315	20150429_110600	-135000	121.357	4.9235	R2O	128500	124000	152000	R2O	T	768,517	466,660	274,724	T	ACQ	-4.38442,-3.59389,2.33672,-124.215,-249.485,0.00671208	79.8152	-757.974,579.973,4.06799e-05,-25.9002
20150501_054342	20150429_110600	-135000	172.742	-18.9366	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-4.26952,-3.32333,2.02496,-137.429,-234.007,-0.0148383	71.2844	-757.974,579.973,-8.13599e-05,-25.9002
20150501_054428	20150429_110600	-135000	172.742	-18.9366	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-4.2672,-3.31849,2.01894,-137.743,-233.75,-0.0168242	71.1235	-758.067,580.027,-4.06799e-05,-25.9002
20150501_054542	20150429_110600	-135000	175.147	-20.8302	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.95507,-2.9783,1.98734,-172.813,-194.968,-0.0114168	70.8638	-757.974,579.973,4.06799e-05,-25.9002
20150501_054651	20150429_110600	-135000	179.083	-20.8302	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.95138,-2.97083,1.97781,-173.372,-194.665,-0.00759599	70.6108	-757.974,579.973,4.06799e-05,-25.9002
20150501_054804	20150429_110600	-135000	179.083	-20.8302	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.78281,-2.81843,1.96467,-188.937,-182.717,0.0242041	70.3666	-757.974,579.973,4.06799e-05,-25.9002
20150501_054918	20150429_110600	-135000	179.083	-20.8302	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.559,-2.63164,1.94644,-208.068,-160.596,0.0178046	70.1077	-758.067,580.027,-4.06799e-05,-25.9002
20150501_055030	20150429_110600	-135000	179.083	-20.8302	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.41809,-2.52229,1.93214,-219.149,-146.58,-0.0476562	69.8539	-757.974,579.973,-8.13599e-05,-25.9002
20150501_055143	20150429_110600	-135000	180.614	-21.2089	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.41407,-2.5149,1.92297,-219.71,-146.278,-0.00872975	69.5993	-757.88,579.919, -0,-25.9002
20150501_055509	20150429_110600	-40000	167.494	-15.1492	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.40316,-2.49381,1.8968,-221.29,-145.395,0.0307613	68.8758	-758.067,579.919, -0,-25.9002
20150501_055811	20150429_110600	-180000	188.485	-24.2388	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.39341,-2.47559,1.87406,-222.696,-144.674,-0.0236895	68.2389	-758.067,579.919, -0,-25.9002
20150501_055920	20150427_023600	-180000	185.424	-21.2089	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.39206,-2.47319,1.86545,-222.573,-145.417,-0.0720227	67.9961	-758.067,579.919, -0,-25.9002
20150501_060033	20150429_110600	-180000	185.424	-21.2089	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.3885,-2.46362,1.85648,-224.544,-144.098,-0.046852	67.7416	-757.88,580.027,-4.06799e-05,-25.9002
20150501_060144	20150429_110600	-180000	194.826	-26.1324	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.38025,-2.47601,1.84784,-224.421,-144.503,0.0335271	67.4909	-758.067,579.919, -0,-25.9002
20150501_060256	20150429_110600	-180000	194.826	-26.1324	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.36234,-2.44986,1.81057,-226.719,-142.23,0.010038	67.2393	-758.067,580.027,-4.06799e-05,-25.9002
20150501_060409	20150429_110600	-180000	194.826	-26.1324	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.26887,-2.29047,1.78325,-242.745,-133.138,0.00279158	66.9833	-758.067,579.919, -0,-25.9002
20150501_060522	20150429_110600	-180000	197.45	-27.6474	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.24649,-2.23465,1.76653,-247.495,-130.224,-0.0079237	66.7283	-758.067,579.919, -0,-25.9002
20150501_060632	20150429_110600	-180000	197.45	-27.6474	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.24289,-2.22816,1.75788,-248.012,-130.003,-0.0164518	66.4855	-758.067,579.919, -0,-25.9002
20150501_060743	20150429_110600	-180000	198.762	-28.4048	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.23883,-2.22111,1.74868,-248.675,-129.737,-0.00943392	66.2343	-757.974,579.973,4.06799e-05,-25.9002
20150501_060855	20150429_110600	-180000	198.762	-28.4048	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.23505,-2.21425,1.73972,-249.287,-129.489,0.00218413	65.9838	-757.974,579.866,-4.06799e-05,-25.9002
20150501_061307	20150429_110600	-180000	209.477	-28.0261	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.22157,-2.19077,1.70877,-251.483,-128.644,0.0129866	65.102	-757.974,580.081, -0,-25.9002
20150501_061417	20150429_110600	-180000	209.477	-28.0261	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.20242,-2.20505,1.70026,-251.887,-127.609,-0.030523	64.8568	-757.974,579.973,4.06799e-05,-25.9002
20150501_061530	20150429_110600	-180000	209.477	-28.0261	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.12982,-2.12005,1.67696,-261.699,-122.252,-0.00618247	64.6022	-757.974,580.081, -0,-25.9002
20150501_061643	20150429_110600	-180000	211.007	-29.9198	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.08935,-2.03462,1.62135,-269.574,-119.348,0.0135917	64.3476	-758.067,579.919, -0,-25.9002
20150501_061754	20150429_110600	-180000	211.007	-29.9198	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.11039,-2.03284,1.60621,-269.326,-120.168,0.0212896	64.1003	-758.067,579.919, -0,-25.9002
20150501_061906	20150429_110600	-180000	211.663	-31.0559	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.07039,-2.01946,1.60159,-272.515,-117.103,0.0053845	63.8497	-757.974,580.081, -0,-25.9002
20150501_062019	20150429_110600	-180000	212.101	-32.5709	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.0511,-1.94667,1.59454,-280.089,-115.631,-0.0176706	63.5936	-758.067,579.919, -0,-25.9002
20150501_062132	20150429_110600	-180000	212.101	-32.5709	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.02693,-1.91977,1.58644,-283.186,-113.237,0.0339054	63.3397	-758.067,579.919, -0,-25.9002
20150501_062245	20150429_110600	-180000	213.631	-33.7071	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01503,-1.90955,1.577,-284.263,-112.113,0.00144456	63.0846	-757.974,579.973,4.06799e-05,-25.9002
20150501_062355	20150429_110600	-180000	213.631	-33.7071	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.01116,-1.90356,1.5687,-284.919,-111.957,-0.000929409	62.8398	-757.974,580.081, -0,-25.9002
20150501_062505	20150429_110600	-180000	218.004	-37.4944	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.00748,-1.89729,1.55991,-285.608,-111.748,0.011539	62.5968	-757.974,580.081, -0,-25.9002
20150501_062615	20150429_110600	-180000	218.004	-37.4944	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.00382,-1.89151,1.55158,-286.269,-111.591,0.0064996	62.3522	-757.974,579.866,-4.06799e-05,-25.9002
20150501_062727	20150429_110600	-180000	218.004	-37.4944	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.99993,-1.88527,1.54277,-286.987,-111.408,0.00376312	62.0999	-757.974,579.973,-8.13599e-05,-25.9002
20150501_062839	20150429_110600	-180000	221.94	-39.7668	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.98335,-1.88753,1.59261,-289.805,-109.976,-0.020309	61.8509	-758.067,580.027,-4.06799e-05,-25.9002
20150501_062951	20150429_110600	-180000	221.94	-39.7668	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.96487,-1.83916,1.6192,-294.019,-108.322,0.0253801	61.6003	-758.067,580.027,-4.06799e-05,-25.9002
20150501_063102	20150429_110600	-180000	225.002	-40.5242	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-2.95784,-1.82815,1.61034,-295.174,-107.895,-0.012919	61.3504	-757.974,579.973,4.06799e-05,-25.9002
20150501_063213	20150429_110600	-180000	225.002	-41.2817	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-2.94754,-1.83567,1.60241,-295.467,-107.107,0.00163576	61.1042	-758.067,579.919, -0,-25.9002
20150501_063325	20150429_110600	-180000	225.002	-41.2817	R2O	128500	124000	152000	R2O	T	769,519	465,650	271,724	F	ACQ	-2.94454,-1.82779,1.59603,-296.555,-107.291,0.00656278	60.8522	-758.067,580.027,-4.06799e-05,-25.9002
20150501_063436	20150429_110600	-180000	227.626	-43.5541	R2O	128500	124000	152000	R2O	T	769,519	465,650	271,724	F	ACQ	-2.93508,-1.82265,1.58285,-297.841,-107.06,0.0108685	60.6069	-758.067,580.027,-4.06799e-05,-25.9002
20150501_063548	20150429_110600	-180000	228.937	-44.3115	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.95701,-1.79377,1.5349,-301.186,-110.366,-0.0112034	60.3541	-758.067,579.919, -0,-25.9002
20150501_063704	20150429_110600	-180000	228.937	-44.3115	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.97153,-1.77145,1.52633,-303.406,-112.353,0.00368322	60.0899	-757.88,580.027,-4.06799e-05,-25.9002
20150501_063818	20150429_110600	-180000	228.937	-44.3115	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-2.98047,-1.78202,1.59698,-303.984,-112.814,0.0123277	59.8352	-757.974,580.081, -0,-25.9002
20150501_063928	20150429_110600	-180000	231.561	-45.8265	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01739,-1.7788,1.61671,-303.17,-116.535,-0.0312306	59.5918	-757.974,579.973,-8.13599e-05,-25.9002
20150501_064041	20150429_110600	-180000	232.873	-46.5839	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.02229,-1.78777,1.58254,-303.475,-117.95,-0.0360524	59.3371	-757.974,580.081, -0,-25.9002
20150501_064155	20150429_110600	-180000	232.873	-46.5839	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01737,-1.78898,1.59033,-303.804,-118.124,0.0109863	59.0799	-757.974,579.973,4.06799e-05,-25.9002
20150501_064310	20150429_110600	-180000	235.497	-48.0988	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01621,-1.77534,1.57725,-305.4,-118.561,0.00365025	58.8172	-757.974,579.973,4.06799e-05,-25.9002
20150501_064423	20150429_110600	-180000	235.497	-48.0988	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00741,-1.78626,1.56551,-304.696,-118.542,-0.0177073	58.5645	-757.974,579.973,4.06799e-05,-25.9002
20150501_064536	20150429_110600	-180000	235.497	-48.0988	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01707,-1.77955,1.55912,-305.266,-120.123,0.0154074	58.3117	-757.974,579.973,4.06799e-05,-25.9002
20150501_064648	20150429_110600	-180000	238.121	-49.6138	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00656,-1.78259,1.54791,-304.984,-120.064,0.0161394	58.0606	-758.067,579.919, -0,-25.9002
20150501_064801	20150429_110600	-180000	238.121	-49.6138	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01349,-1.79748,1.53377,-304.836,-121.811,-0.0411068	57.8065	-757.974,580.081, -0,-25.9002
20150501_064913	20150429_110600	-180000	239.433	-50.3712	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00418,-1.78885,1.52636,-305.783,-121.204,0.0220176	57.559	-758.067,580.027,-4.06799e-05,-25.9002
20150501_065022	20150429_110600	-180000	239.433	-50.3712	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00053,-1.78368,1.51857,-306.524,-121.134,-0.0131221	57.3186	-757.974,579.973,4.06799e-05,-25.9002
20150501_065132	20150429_110600	-180000	242.057	-51.8862	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01044,-1.79748,1.50955,-305.862,-122.923,0.0336048	57.0742	-757.974,579.973,4.06799e-05,-25.9002
20150501_065245	20150429_110600	-180000	242.057	-51.8862	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00417,-1.78281,1.49996,-307.401,-123.003,0.0400637	56.8229	-757.974,579.973,4.06799e-05,-25.9002
20150501_065358	20150429_110600	-180000	244.681	-53.4011	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.00192,-1.80355,1.49157,-306.237,-123.027,0.0102479	56.5682	-757.974,580.081, -0,-25.9002
20150501_065511	20150429_110600	-180000	245.774	-54.5373	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.01795,-1.81999,1.48414,-305.148,-124.881,-0.0350334	56.3145	-758.067,580.027,-4.06799e-05,-25.9002
20150501_065624	20150429_110600	-180000	249.492	-57.1884	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.0173,-1.85275,1.47313,-302.246,-126.042,0.0156475	56.0648	-757.974,579.973,4.06799e-05,-25.9002
20150501_065735	20150429_110600	-180000	249.492	-57.1884	R2O	128500	124000	152000	R2O	F	769,519	465,660	271,724	F	ACQ	-3.01719,-1.85994,1.46537,-302.102,-126.525,-0.0163716	55.8164	-757.88,580.027,-4.06799e-05,-25.9002
20150501_065847	20150429_110600	-180000	249.492	-57.1884	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.02479,-1.86741,1.45816,-302.074,-127.519,-0.0574402	55.5664	-758.067,580.027,-4.06799e-05,-25.9002
20150501_070006	20150429_110600	-180000	249.929	-56.4309	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.04002,-1.8791,1.44637,-300.359,-129.813,-0.00976093	55.2955	-757.974,580.081, -0,-25.9002
20150501_070115	20150429_110600	-180000	249.929	-56.4309	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.03632,-1.87463,1.43899,-301.188,-129.779,-0.0420315	55.0567	-757.974,579.973,4.06799e-05,-25.9002
20150501_070228	20150429_110600	-180000	251.897	-56.8097	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.02643,-1.87208,1.4317,-301.907,-130.024,-0.0397027	54.8043	-757.974,580.081, -0,-25.9002
20150501_070343	20150429_110600	-180000	252.553	-57.9458	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.04959,-1.83069,1.42677,-306.836,-131.574,-0.00935651	54.543	-758.067,580.027,-4.06799e-05,-25.9002
20150501_070456	20150429_110600	-180000	255.395	-60.597	R2O	128500	124000	152000	R2O	T	769,519	465,660	271,724	F	ACQ	-3.0616,-1.82694,1.42142,-308,-132.661,-0.0258612	54.292	-757.974,580.081, -0,-25.9002
20150501_070606	20150429_110600	-180000	256.707	-61.3544	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.05837,-1.82271,1.41432,-308.794,-132.605,0.0133168	54.0511	-757.974,579.866,-4.06799e-05,-25.9002
20150501_070718	20150429_110600	-180000	256.707	-61.3544	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.03192,-1.80117,1.40895,-310.96,-132.984,0.027856	53.8007	-757.974,580.081, -0,-25.9002
20150501_070835	20150429_110600	-180000	259.331	-62.8694	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.03205,-1.82311,1.40003,-309.798,-134.074,-0.0179424	53.534	-757.974,579.973,4.06799e-05,-25.9002
20150501_070952	20150429_110600	-180000	260.643	-63.6268	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.02646,-1.81561,1.39688,-311.124,-134.001,0.0158498	53.2691	-757.974,579.973,4.06799e-05,-25.9002
20150501_071106	20150429_110600	-180000	263.267	-65.1417	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.02415,-1.79991,1.38689,-312.548,-134.229,0.0870453	53.0146	-757.974,579.973,4.06799e-05,-25.9002
20150501_071223	20150429_110600	-180000	265.891	-66.6567	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.01842,-1.77561,1.37891,-315.822,-133.761,-0.021912	52.7463	-758.067,579.919, -0,-25.9002
20150501_071337	20150429_110600	-180000	265.891	-66.6567	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-2.9988,-1.76031,1.37046,-318.212,-131.411,0.0106694	52.4936	-757.974,579.973,-8.13599e-05,-25.9002
20150501_071454	20150429_110600	-180000	268.734	-66.2779	R2O	128500	124000	152000	R2O	T	769,519	465,660	291,724	F	ACQ	-3.00473,-1.78856,1.36098,-316.803,-132.261,-0.0155316	52.2269	-758.067,580.027,-4.06799e-05,-25.9002

We optimize the ToF for the Z stage at 57mm and we get 83.3us.

MRK493

00:24: new target, seeing is about 0.8" from DIMM

In the meanwhile we try a PCT

TN	Sup
'20150501_085556','20150501_085717'
'20150501_090044','20150501_090202'

NGC6384

2:00: seeing 0.8" hot spot on LUCI2 is 998, 1011, Board stages are at -73.5, -51.5

We close the TT loop on the pyramid, BIN4, 400Hz, + TS

TN	Notes
20150501_095523	OL

we try an offset from telescope:

TCS offset	Stage offset
+X	-X
+Y	+Y

TN	Notes
20150501_115632	OL just tracking on PYR
20150501_115855
20150501_120008
20150501_120119

Then we take measurements for vibration compensation

-- MarcoBonaglia - 20 May 2015
