17:30: Sx system started from AArb, we try a PockelsCellsTransmission test:
We start also the FLAO sx system with the pennina: cube @ 79deg, stage @ -1mm
19:00: we open.
Then we try a SR spot optimization:
Delta focus is 3250 steps = 0.3mm corresponding to 100 steps of LBC. LFS best position @ -85k steps.
LGS on PatCams:
We have to redefine the Laser number to color map:
20:15: stop to propagation! we have clouds at ~50m above the telescope...
20:20: dome closed, humidity is rising...
We check the APD functionality using the FLAO pennina.
21:30: back on-sky with lasers! we acquire with LAT in a single shot!
SX LM1 to QC IM: 20151024_042700
DIMM seeing is around 2.7". We acquire and we try to guide with jitter to pupil mirror:
We acquire some data in serie while in open loop on the sensor:
Then we switch on the VibComp:
Now we keep VC on and we optimize the spot using SR procedure:
Delta focus = 4k steps = 0.4mm that corresponds ~100 steps of LBC. LFS @ -100k step. Then we acquire a couple of snapshot feeding the sensor:
Now we try GOX procedures: we start optimizing the corrector, we keep the LGS in focus without keeping it by actuating the LFS.
Result is ugly...

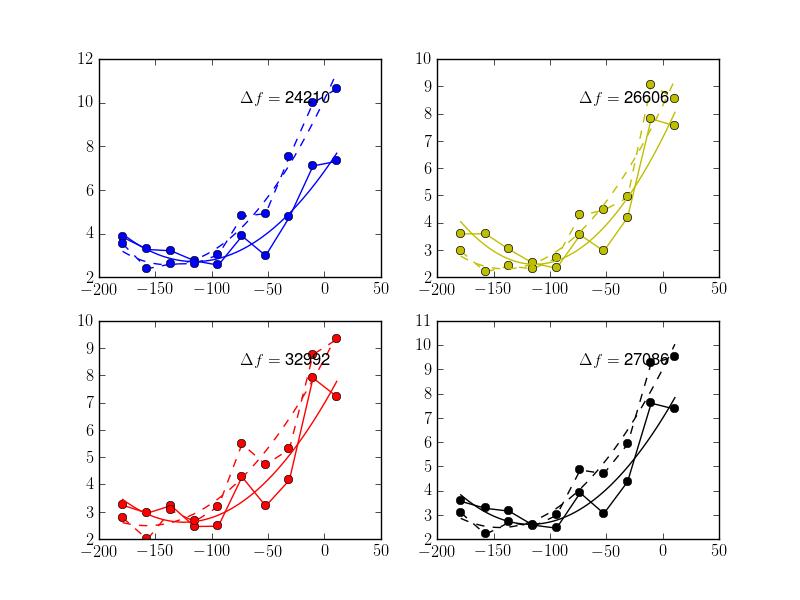

And then we optimize the LFS:
Also this scan is bad... Probably due to bad seeing and high elevation (~88deg).
Then we feed again the sensor.
We test the acquisition sequence from AArb. Anyhow seeing is very bad!
23:30: seeing is really bad (>3") so we turn off the lasers and we check the LAT flexures pointing at various altitudes.
Second interation with gains:

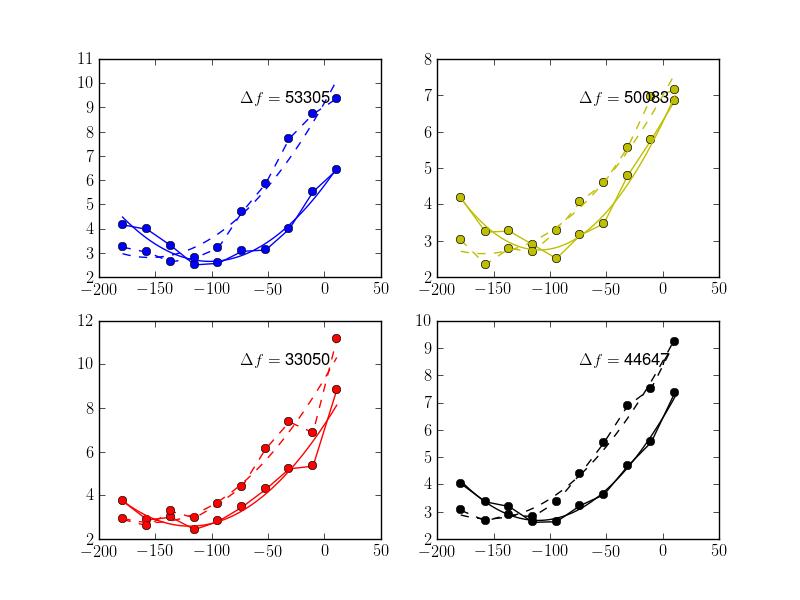

Delta focus=8k step = 0.8mm corresponding ~100 steps of LBC.
Then we acquire a serie of frames on PatCams:
And into LGSW:
Seeing is about 1.5" so we optimize ToF and pupils positions and we start to acquire OL data with LGSW:
We adjust the pupils and piezos positions and we acquire a:
* SX pupil target tag: 20151024_105817*
SX jitter initial position: 20151024_105901
Seeing is down to 1.2", we acquire data for VibComp analysis with PC open at 1us:
We do VibComp measurements and then we resume:
5:07: beam shaping with SR procedure:
Then we test the AArb acquisition sequence up to 6:20...
We try to acquire an APD dark with 10ms integration:
We find then the best position to feed the APD with Filter Wheel #2: 0.376 filters
We acquire a:
Board Setup: 24 Oct 15 - ARGOS_QC_PENNINA
We have a spot on the CCD47=10px of diameter (BIN16) with z stage @ 15mm (or 55mm). The best focus is at 35mm. Moving the z stage to 0mm we have 17px spot = 2".
In this configuration we measure a FlatField to assess the channels quantum efficiency: [100; 83; 23; 96]
Then we try to move the stages by 0.2mm:
We measure again the quantum efficiency and we get: [93; 36; 37; 100]

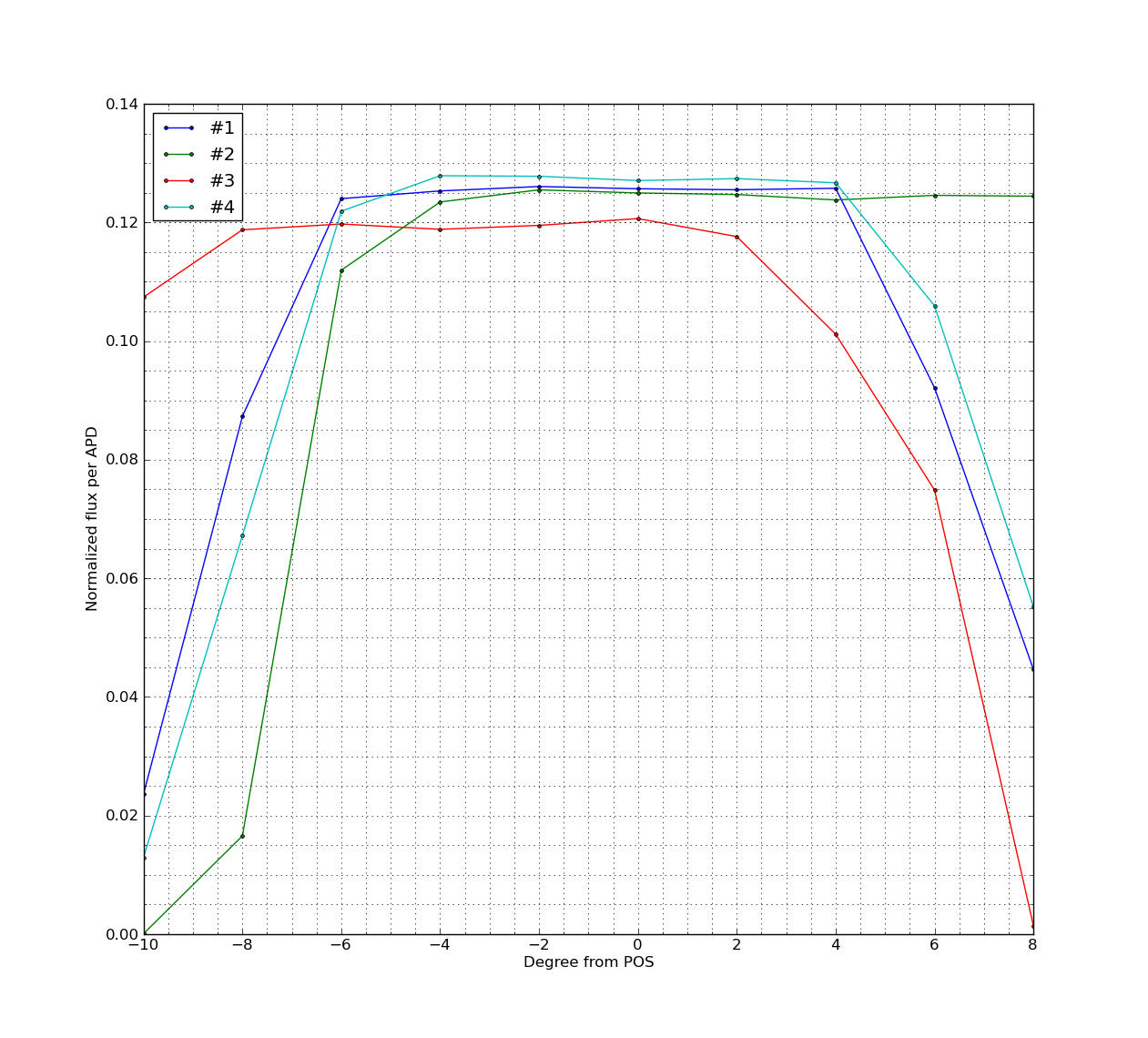

We consider the first QE measurement and we try to measure the aperture wheel POS1 field stop:
-- MarcoBonaglia - 28 Oct 2015
| TN | Plot | Map |
|---|---|---|
| ('20151024_004135','20151024_004258') |  |
 |
Hip102605
We begin with LAT acquisition:| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_022233 | 0, 0, 0 | NA | NA | 1.68588 | F | F | LGS out |
| 20151024_022513 | 0, 0, 0 | NA | NA | 0.964444 | F | F | LGS on PatCams |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_024015 | 0, 0, 0 | NA | NA | 0.944085 | F | F | LBFC opt |
| 20151024_024031 | 0, 0, 0 | NA | NA | 0.946742 | F | F | LBFC opt |
| 20151024_024045 | 0, 0, 0 | NA | NA | 0.931084 | F | F | LBFC opt |
| 20151024_024100 | 0, 0, 0 | NA | NA | 0.950309 | F | F | LBFC opt |
| 20151024_024116 | 0, 0, 0 | NA | NA | 0.971066 | F | F | LBFC opt |
| 20151024_024131 | 0, 0, 0 | NA | NA | 1.00675 | F | F | LBFC opt |
| 20151024_024146 | 0, 0, 0 | NA | NA | 1.03379 | F | F | LBFC opt |
| 20151024_024201 | 0, 0, 0 | NA | NA | 1.02267 | F | F | LBFC opt |
| 20151024_024216 | 0, 0, 0 | NA | NA | 1.03465 | F | F | LBFC opt |
| 20151024_024231 | 0, 0, 0 | NA | NA | 1.02315 | F | F | LBFC opt |

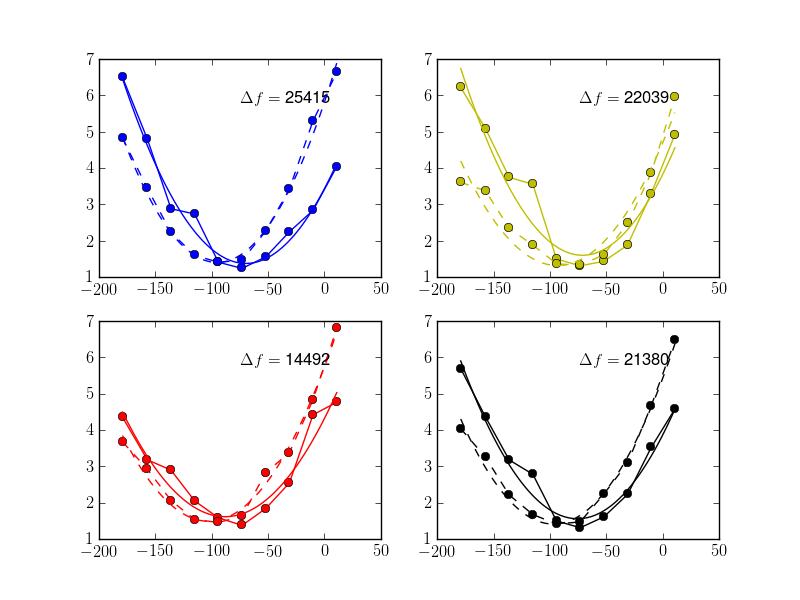

Delta focus is 3250 steps = 0.3mm corresponding to 100 steps of LBC. LFS best position @ -85k steps.
LGS on PatCams:
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_024921 | 0, 0, 0 | NA | NA | 1.01455 | T | F | |
| 20151024_025523 | 0, 0, 0 | NA | NA | 1.02305 | F | F | |
- Laser 1 feeds the RedChannel on Sx
- Laser 2 feeds the YellowChannel on Sx
- Laser 3 feeds the BlueChannel on Sx
| Laser | X | Y |
|---|---|---|
| 1 | 1085 | 153 |
| 2 | 720 | 893 |
| 3 | 270 | 206 |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_030700 | 0, 0, 0 | NA | NA | 1.98963 | F | F | |
| 20151024_030750 | 0, 0, 0 | NA | NA | 1.69399 | T | F | |
| Board | -75 | -51 | 45 |
|---|
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_042851 | 0, 0, 0 | NA | NA | 2.77413 | T | F | |
| 20151024_042920 | 0, 0, 0 | NA | NA | 3.11941 | T | F | |
| 20151024_043628 | 0, 0, 0 | NA | NA | 2.32077 | F | F | on PatCams |
| 20151024_043710 | 0, 0, 0 | NA | NA | 2.81054 | F | F | back to Lgsw |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_043819 | 0, 0, 0 | NA | NA | 2.36067 | F | F | Auto |
| 20151024_043927 | 0, 0, 0 | NA | NA | 2.24559 | T | F | Auto |
| 20151024_044035 | 0, 0, 0 | NA | NA | 2.37794 | T | F | Auto |
| 20151024_044050 | 0, 0, 0 | NA | NA | 2.5349 | T | F | |
| 20151024_044126 | 0, 0, 0 | NA | NA | 2.73764 | T | F | |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_044205 | 0, 0, 0 | NA | NA | 2.78499 | T | F | VC g=0.9 |
| 20151024_044234 | 0, 0, 0 | NA | NA | 2.7718 | T | F | |
| 20151024_044328 | 0, 0, 0 | NA | NA | 2.53055 | T | F | |
| 20151024_044444 | 0, 0, 0 | NA | NA | 2.49045 | T | F | VC off |
| 20151024_044506 | 0, 0, 0 | NA | NA | 2.34789 | T | F | |
| 20151024_044525 | 0, 0, 0 | NA | NA | 2.25943 | T | F | |
| 20151024_044553 | 0, 0, 0 | NA | NA | 2.78499 | T | F | VC g=0.9 |
| 20151024_044612 | 0, 0, 0 | NA | NA | 2.7718 | T | F | |
| 20151024_044633 | 0, 0, 0 | NA | NA | 2.53055 | T | F |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_044847 | 0, 0, 0 | NA | NA | 2.8222 | F | F | LBFC opt |
| 20151024_044902 | 0, 0, 0 | NA | NA | 2.84821 | F | F | LBFC opt |
| 20151024_044917 | 0, 0, 0 | NA | NA | 2.56714 | F | F | LBFC opt |
| 20151024_044933 | 0, 0, 0 | NA | NA | 2.43195 | F | F | LBFC opt |
| 20151024_044948 | 0, 0, 0 | NA | NA | 2.24815 | F | F | LBFC opt |
| 20151024_045002 | 0, 0, 0 | NA | NA | 2.09001 | F | F | LBFC opt |
| 20151024_045018 | 0, 0, 0 | NA | NA | 1.97868 | F | F | LBFC opt |
| 20151024_045032 | 0, 0, 0 | NA | NA | 2.0356 | F | F | LBFC opt |
| 20151024_045047 | 0, 0, 0 | NA | NA | 2.0746 | F | F | LBFC opt |
| 20151024_045102 | 0, 0, 0 | NA | NA | 2.18934 | F | F | LBFC opt |

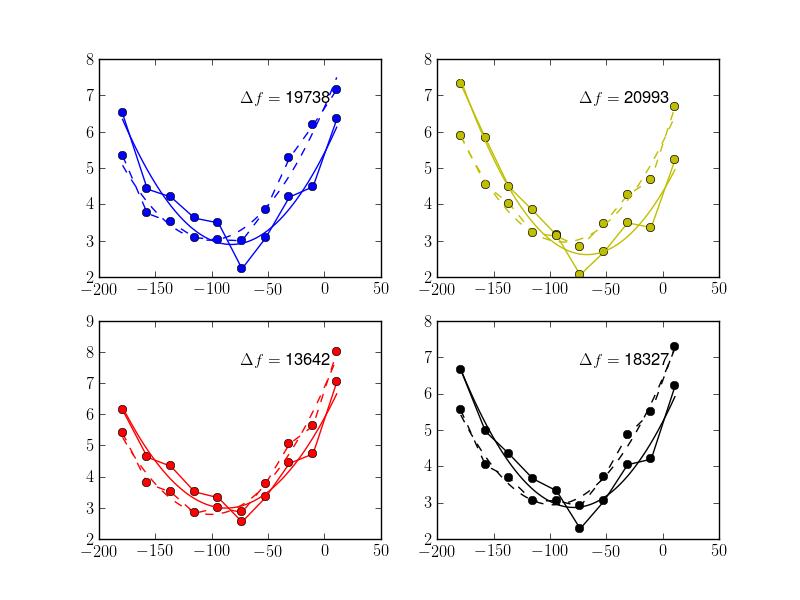

Delta focus = 4k steps = 0.4mm that corresponds ~100 steps of LBC. LFS @ -100k step. Then we acquire a couple of snapshot feeding the sensor:
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_045457 | 0, 0, 0 | NA | NA | 3.68332 | F | F | |
| 20151024_045527 | 0, 0, 0 | NA | NA | 2.76693 | F | F | |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_050107 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050117 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050128 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050139 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050149 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050200 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050211 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050222 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050233 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| 20151024_050243 | 0, 0, 0 | NA | NA | -1 | F | F | LBC opt |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_050605 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050620 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050635 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050650 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050705 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050720 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050736 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050752 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050807 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| 20151024_050822 | 0, 0, 0 | NA | NA | -1 | F | F | LBF opt |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_051132 | 0, 0, 0 | NA | NA | -1 | F | F | |
| 20151024_051239 | 0, 0, 0 | NA | NA | -1 | T | F | |
| 20151024_051404 | 0, 0, 0 | NA | NA | -1 | T | F | |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_055509 | 0, 0, 0 | NA | NA | NA | F | F | |
| 20151024_060747 | 0, 0, 0 | NA | NA | 3.63825 | F | F | |
| 20151024_062701 | 0, 0, 0 | NA | NA | 2.65987 | F | F | |
VibComp gain optimization
We put LGS on PatCams and we acquire ~30 frames (no LGSW slopes), we are facing into wind direction:| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_073801 | 0, 0, 0 | NA | NA | 1.69846 | F | F | VC off |
| 20151024_073818 | 0, 0, 0 | NA | NA | 1.74161 | F | F | |
| 20151024_074129 | 0, 0, 0 | NA | NA | 1.58733 | F | F | g=0.9 |
| 20151024_074149 | 0, 0, 0 | NA | NA | 1.42801 | F | F | |
| 20151024_074202 | 0, 0, 0 | NA | NA | 1.4338 | F | F | |
| 20151024_074254 | 0, 0, 0 | NA | NA | 1.45687 | F | F | VC off |
| 20151024_074319 | 0, 0, 0 | NA | NA | 1.32335 | F | F | |
| 20151024_074329 | 0, 0, 0 | NA | NA | 1.3025 | F | F | |
| 20151024_074627 | 0, 0, 0 | NA | NA | 1.52046 | F | F | g(phi)=0.5 (LM1&2) |
| 20151024_074656 | 0, 0, 0 | NA | NA | 1.44332 | F | F | |
| 20151024_074732 | 0, 0, 0 | NA | NA | 1.40978 | F | F | |
| 20151024_074809 | 0, 0, 0 | NA | NA | 1.62334 | F | F | g(phi)=0.7 (LM1&2) |
| 20151024_074829 | 0, 0, 0 | NA | NA | 1.45715 | F | F | |
| 20151024_074837 | 0, 0, 0 | NA | NA | 1.4447 | F | F | |
| 20151024_074936 | 0, 0, 0 | NA | NA | 1.41761 | F | F | g(phi)=0.7;-0.7 |
| 20151024_074954 | 0, 0, 0 | NA | NA | 1.35286 | F | F | |
| 20151024_075004 | 0, 0, 0 | NA | NA | 1.29785 | F | F | |
| 20151024_075041 | 0, 0, 0 | NA | NA | 1.21835 | F | F | g(phi)=-0.7;0.7 |
| 20151024_075113 | 0, 0, 0 | NA | NA | 1.11941 | F | F | |
| 20151024_075121 | 0, 0, 0 | NA | NA | 1.17967 | F | F | |
| 20151024_075141 | 0, 0, 0 | NA | NA | 1.15161 | F | F | g(phi)=-0.7;-0.7 |
| 20151024_075201 | 0, 0, 0 | NA | NA | 1.17588 | F | F | |
| 20151024_075210 | 0, 0, 0 | NA | NA | 1.16115 | F | F | |
| 20151024_075252 | 0, 0, 0 | NA | NA | 1.15927 | F | F | g(theta)=0.7;0.7 |
| 20151024_075314 | 0, 0, 0 | NA | NA | 1.2179 | F | F | |
| 20151024_075326 | 0, 0, 0 | NA | NA | 1.21947 | F | F | |
| 20151024_075342 | 0, 0, 0 | NA | NA | 1.2272 | F | F | g(theta)=-0.7;0.7 |
| 20151024_075357 | 0, 0, 0 | NA | NA | 1.24734 | F | F | |
| 20151024_075420 | 0, 0, 0 | NA | NA | 1.22282 | F | F | |
| 20151024_075459 | 0, 0, 0 | NA | NA | 1.1815 | F | F | g(theta)=0.7;-0.7 |
| 20151024_075512 | 0, 0, 0 | NA | NA | 1.16094 | F | F | |
| 20151024_075522 | 0, 0, 0 | NA | NA | 1.11383 | F | F | |
| 20151024_075543 | 0, 0, 0 | NA | NA | 1.13756 | F | F | g(theta)=-0.7;-0.7 |
| 20151024_075623 | 0, 0, 0 | NA | NA | 1.32875 | F | F | |
| 20151024_075634 | 0, 0, 0 | NA | NA | 1.34318 | F | F |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_084703 | 0, 0, 0 | NA | NA | 1.72678 | F | F | VC off |
| 20151024_084722 | 0, 0, 0 | NA | NA | 1.91226 | F | F | g(phi)=1.1;1.1 |
| 20151024_084829 | 0, 0, 0 | NA | NA | 2.32703 | F | F | VC off |
| 20151024_084843 | 0, 0, 0 | NA | NA | 2.54192 | F | F | g(phi)=1.1;1.1 |
| 20151024_084910 | 0, 0, 0 | NA | NA | 2.67729 | F | F | VC off |
| 20151024_084926 | 0, 0, 0 | NA | NA | 2.60659 | F | F | g(phi)=1.1;1.1 |
| 20151024_085650 | 0, 0, 0 | NA | NA | 2.34747 | F | F | VC off |
| 20151024_085702 | 0, 0, 0 | NA | NA | 2.31294 | F | F | g(phi)=-1.1;1.1 |
| 20151024_085721 | 0, 0, 0 | NA | NA | 2.10029 | F | F | VC off |
| 20151024_085737 | 0, 0, 0 | NA | NA | 2.09831 | F | F | g(phi)=-1.1;1.1 |
| 20151024_085751 | 0, 0, 0 | NA | NA | 2.06498 | F | F | VC off |
| 20151024_085804 | 0, 0, 0 | NA | NA | 1.9839 | F | F | g(phi)=-1.1;1.1 |
Hip18130
3:05: seeing decreases, we start again with Lgsw: first we run a beam shaping (SR):| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_100520 | 0, 0, 0 | NA | NA | 2.28538 | F | F | LBFC opt |
| 20151024_100535 | 0, 0, 0 | NA | NA | 2.12348 | F | F | LBFC opt |
| 20151024_100550 | 0, 0, 0 | NA | NA | 1.8908 | F | F | LBFC opt |
| 20151024_100605 | 0, 0, 0 | NA | NA | 1.96771 | F | F | LBFC opt |
| 20151024_100620 | 0, 0, 0 | NA | NA | 1.99961 | F | F | LBFC opt |
| 20151024_100635 | 0, 0, 0 | NA | NA | 1.9561 | F | F | LBFC opt |
| 20151024_100650 | 0, 0, 0 | NA | NA | 2.00122 | F | F | LBFC opt |
| 20151024_100705 | 0, 0, 0 | NA | NA | 2.05332 | F | F | LBFC opt |
| 20151024_100720 | 0, 0, 0 | NA | NA | 2.00489 | F | F | LBFC opt |
| 20151024_100736 | 0, 0, 0 | NA | NA | 2.08001 | F | F | LBFC opt |
Delta focus=8k step = 0.8mm corresponding ~100 steps of LBC.
Then we acquire a serie of frames on PatCams:
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_101118 | 0, 0, 0 | NA | NA | 2.0379 | F | F | |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_102600 | 0, 0, 0 | NA | NA | 1.48309 | T | F | |
| 20151024_102637 | 0, 0, 0 | NA | NA | 1.63235 | T | F | |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_102844 | 0, 0, 0 | NA | NA | 2.24724 | T | T | Auto |
| 20151024_102953 | 0, 0, 0 | NA | NA | 1.76258 | T | F | Auto |
| 20151024_103101 | 0, 0, 0 | NA | NA | 1.73218 | T | F | Auto |
| 20151024_103210 | 0, 0, 0 | NA | NA | 1.81259 | T | F | Auto |
| 20151024_103318 | 0, 0, 0 | NA | NA | 1.69261 | F | F | VC switched on |
| 20151024_103426 | 0, 0, 0 | NA | NA | 2.29591 | T | F | Auto |
| 20151024_103534 | 0, 0, 0 | NA | NA | 1.79716 | T | F | Auto |
| 20151024_103643 | 0, 0, 0 | NA | NA | 1.48798 | T | F | PC open time to 2us |
| 20151024_103750 | 0, 0, 0 | NA | NA | 1.36968 | T | F | Auto |
| 20151024_103905 | 0, 0, 0 | NA | NA | 1.56373 | T | F | |
| 20151024_103923 | 0, 0, 0 | NA | NA | 2.04391 | T | F | |
| 20151024_103934 | 0, 0, 0 | NA | NA | 2.18071 | T | F | |
| 20151024_103945 | 0, 0, 0 | NA | NA | 2.28466 | T | F | |
| 20151024_103954 | 0, 0, 0 | NA | NA | 2.31297 | T | F | |
| 20151024_104004 | 0, 0, 0 | NA | NA | 2.15035 | T | F | |
| 20151024_104012 | 0, 0, 0 | NA | NA | 2.02354 | T | F | |
| 20151024_104021 | 0, 0, 0 | NA | NA | 1.91425 | T | F | |
| 20151024_104030 | 0, 0, 0 | NA | NA | 1.81922 | T | F | |
| 20151024_104040 | 0, 0, 0 | NA | NA | 1.75705 | T | F | |
| 20151024_104050 | 0, 0, 0 | NA | NA | 1.71146 | T | F | |
| 20151024_104104 | 0, 0, 0 | NA | NA | 1.7244 | T | F | |
| 20151024_104122 | 0, 0, 0 | NA | NA | 1.73295 | T | F | Yellow pupil shifted down |
| 20151024_104150 | 0, 0, 0 | NA | NA | 1.65474 | T | F | |
| 20151024_104203 | 0, 0, 0 | NA | NA | 1.48174 | T | F | |
| 20151024_104219 | 0, 0, 0 | NA | NA | 1.4579 | T | F | |
| 20151024_104237 | 0, 0, 0 | NA | NA | 1.51647 | T | F | |
| 20151024_104306 | 0, 0, 0 | NA | NA | 1.4666 | T | F | Auto |
| 20151024_104414 | 0, 0, 0 | NA | NA | 1.54191 | T | F | Auto |
| 20151024_104558 | 0, 0, 0 | NA | NA | 1.39021 | T | F | Auto |
| 20151024_104637 | 0, 0, 0 | NA | NA | 1.66446 | T | F | Auto |
| 20151024_104715 | 0, 0, 0 | NA | NA | 2.17518 | T | F | Auto |
| 20151024_104806 | 0, 0, 0 | NA | NA | 1.81194 | T | F | Auto |
| 20151024_104826 | 0, 0, 0 | NA | NA | 1.85268 | T | F | Auto |
| 20151024_104844 | 0, 0, 0 | NA | NA | 1.83318 | T | F | Auto |
| 20151024_104902 | 0, 0, 0 | NA | NA | 1.67036 | T | F | Auto |
| 20151024_104920 | 0, 0, 0 | NA | NA | 1.7503 | T | F | Auto |
| 20151024_104939 | 0, 0, 0 | NA | NA | 1.7551 | T | F | Auto |
| 20151024_104957 | 0, 0, 0 | NA | NA | 1.88741 | T | F | Auto |
| 20151024_105015 | 0, 0, 0 | NA | NA | 1.72977 | T | F | Auto |
| 20151024_105412 | 0, 0, 0 | NA | NA | 1.58905 | T | F | Auto |
| 20151024_105430 | 0, 0, 0 | NA | NA | 1.5199 | T | F | Pupil mirror resetted |
| 20151024_105448 | 0, 0, 0 | NA | NA | 1.47267 | T | F | Auto |
| 20151024_105506 | 0, 0, 0 | NA | NA | 1.38675 | T | F | Auto |
| 20151024_105525 | 0, 0, 0 | NA | NA | 1.22129 | T | F | Auto |
| 20151024_105543 | 0, 0, 0 | NA | NA | 1.16845 | T | F | Auto |
| 20151024_105601 | 0, 0, 0 | NA | NA | 1.1849 | T | F | Auto |
| 20151024_105620 | 0, 0, 0 | NA | NA | 1.25917 | T | F | Auto |
| 20151024_105638 | 0, 0, 0 | NA | NA | 1.28283 | T | F | Auto |
| 20151024_105656 | 0, 0, 0 | NA | NA | 1.20692 | T | F | Auto |
| 20151024_105715 | 0, 0, 0 | NA | NA | 1.16547 | T | F | Auto |
| 20151024_105733 | 0, 0, 0 | NA | NA | 1.17146 | T | F | Auto |
| 20151024_105751 | 0, 0, 0 | NA | NA | 1.16677 | T | F | Auto |
| 20151024_105810 | 0, 0, 0 | NA | NA | 1.15557 | T | F | Auto |
| 20151024_105828 | 0, 0, 0 | NA | NA | 1.28328 | T | F | Auto |
| 20151024_105846 | 0, 0, 0 | NA | NA | 1.29893 | T | F | Auto |
| 20151024_105905 | 0, 0, 0 | NA | NA | 1.14565 | T | F | Auto |
| 20151024_105923 | 0, 0, 0 | NA | NA | 1.1216 | T | F | Auto |
| 20151024_105941 | 0, 0, 0 | NA | NA | 1.08325 | T | F | Auto |
| 20151024_105959 | 0, 0, 0 | NA | NA | 1.12237 | T | F | Auto |
| 20151024_110018 | 0, 0, 0 | NA | NA | 1.1816 | T | F | Auto |
| 20151024_110036 | 0, 0, 0 | NA | NA | 1.26346 | T | F | Auto |
| Beam | PM X | PM Y |
|---|---|---|
| Blue | 315 | 430 |
| Yellow | 377 | 455 |
| Red | 507 | 435 |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_111228 | 0, 0, 0 | NA | NA | 1.24967 | T | F | Auto |
| 20151024_111247 | 0, 0, 0 | NA | NA | 1.19325 | T | F | Auto |
| 20151024_111305 | 0, 0, 0 | NA | NA | 1.14467 | T | F | Auto |
| 20151024_111324 | 0, 0, 0 | NA | NA | 1.10025 | T | F | Auto |
| 20151024_111342 | 0, 0, 0 | NA | NA | 1.14826 | T | F | Auto |
| 20151024_111401 | 0, 0, 0 | NA | NA | 1.17 | T | T | PL closed |
| 20151024_111419 | 0, 0, 0 | NA | NA | 1.18756 | T | T | Auto |
| 20151024_111438 | 0, 0, 0 | NA | NA | 1.11011 | T | T | Auto |
| 20151024_111456 | 0, 0, 0 | NA | NA | 1.17589 | T | T | Auto |
| 20151024_111514 | 0, 0, 0 | NA | NA | 1.19403 | T | T | Auto |
| 20151024_111532 | 0, 0, 0 | NA | NA | 1.15152 | T | T | Auto |
| 20151024_111551 | 0, 0, 0 | NA | NA | 1.16131 | T | T | Auto |
| 20151024_111609 | 0, 0, 0 | NA | NA | 1.22529 | T | T | Auto |
| 20151024_111627 | 0, 0, 0 | NA | NA | 1.22112 | T | T | Auto |
| 20151024_111646 | 0, 0, 0 | NA | NA | 1.22966 | T | T | Auto |
| 20151024_111704 | 0, 0, 0 | NA | NA | 1.25901 | T | T | Auto |
| 20151024_111722 | 0, 0, 0 | NA | NA | 1.35267 | T | T | Auto |
| 20151024_111741 | 0, 0, 0 | NA | NA | 1.24858 | T | T | Auto |
| 20151024_111759 | 0, 0, 0 | NA | NA | 1.23494 | T | T | Auto |
| 20151024_111818 | 0, 0, 0 | NA | NA | 1.34298 | T | T | Auto |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_113613 | 0, 0, 0 | NA | NA | 1.23804 | T | T | Auto |
| 20151024_113632 | 0, 0, 0 | NA | NA | 1.34099 | T | T | Auto |
| 20151024_113651 | 0, 0, 0 | NA | NA | 1.4092 | T | T | Auto |
| 20151024_113709 | 0, 0, 0 | NA | NA | 1.35983 | T | T | Auto |
| 20151024_113727 | 0, 0, 0 | NA | NA | 1.28408 | T | T | Auto |
| 20151024_113746 | 0, 0, 0 | NA | NA | 1.32474 | T | T | Auto |
| 20151024_113805 | 0, 0, 0 | NA | NA | 1.2288 | T | T | Auto |
| 20151024_113823 | 0, 0, 0 | NA | NA | 1.24263 | T | T | Auto |
| 20151024_113841 | 0, 0, 0 | NA | NA | 1.26755 | T | T | Auto |
| 20151024_113859 | 0, 0, 0 | NA | NA | 1.19236 | T | T | Auto |
| 20151024_113917 | 0, 0, 0 | NA | NA | 1.0672 | T | T | Auto |
| 20151024_113935 | 0, 0, 0 | NA | NA | 1.1315 | T | T | Auto |
| 20151024_113953 | 0, 0, 0 | NA | NA | 1.21153 | T | T | Auto |
| 20151024_114012 | 0, 0, 0 | NA | NA | 1.16204 | T | T | Auto |
| 20151024_114030 | 0, 0, 0 | NA | NA | 1.14942 | T | T | Auto |
| 20151024_114048 | 0, 0, 0 | NA | NA | 1.10504 | T | T | Auto |
| 20151024_114106 | 0, 0, 0 | NA | NA | 1.05344 | T | T | Auto |
| 20151024_114124 | 0, 0, 0 | NA | NA | 1.03781 | T | T | Auto |
| 20151024_114142 | 0, 0, 0 | NA | NA | 1.12573 | T | T | Auto |
| 20151024_114201 | 0, 0, 0 | NA | NA | 1.04812 | T | T | Auto |
| 20151024_114219 | 0, 0, 0 | NA | NA | 1.01676 | T | T | Auto |
| 20151024_114237 | 0, 0, 0 | NA | NA | 1.0889 | T | T | Auto |
| 20151024_114256 | 0, 0, 0 | NA | NA | 1.12575 | T | T | Auto |
| 20151024_114314 | 0, 0, 0 | NA | NA | 1.22221 | T | T | Auto |
| 20151024_114332 | 0, 0, 0 | NA | NA | 1.31113 | T | T | Auto |
| 20151024_114351 | 0, 0, 0 | NA | NA | 1.28081 | T | T | Auto |
| 20151024_114409 | 0, 0, 0 | NA | NA | 1.35627 | T | T | Auto |
| 20151024_114427 | 0, 0, 0 | NA | NA | 1.35414 | T | T | Auto |
| 20151024_114445 | 0, 0, 0 | NA | NA | 1.29845 | T | T | Auto |
| 20151024_114504 | 0, 0, 0 | NA | NA | 1.18099 | T | T | Auto |
| 20151024_114521 | 0, 0, 0 | NA | NA | 1.20193 | T | T | Auto |
| 20151024_114540 | 0, 0, 0 | NA | NA | 1.24883 | T | T | Auto |
| 20151024_114558 | 0, 0, 0 | NA | NA | 1.19281 | T | T | Auto |
| 20151024_114616 | 0, 0, 0 | NA | NA | 1.20183 | T | T | Auto |
| 20151024_114635 | 0, 0, 0 | NA | NA | 1.17711 | T | T | Auto |
| 20151024_114653 | 0, 0, 0 | NA | NA | 1.18743 | T | T | Auto |
| 20151024_114712 | 0, 0, 0 | NA | NA | 1.13849 | T | T | Auto |
| 20151024_114730 | 0, 0, 0 | NA | NA | 1.13593 | T | T | Auto |
| 20151024_114747 | 0, 0, 0 | NA | NA | 1.14088 | T | T | Auto |
| 20151024_114806 | 0, 0, 0 | NA | NA | 1.21474 | T | T | Auto |
| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_120826 | 0, 0, 0 | NA | NA | 1.7413 | F | F | LBFC opt |
| 20151024_120842 | 0, 0, 0 | NA | NA | 1.58118 | F | F | LBFC opt |
| 20151024_120857 | 0, 0, 0 | NA | NA | 1.44493 | F | F | LBFC opt |
| 20151024_120912 | 0, 0, 0 | NA | NA | 1.49585 | F | F | LBFC opt |
| 20151024_120928 | 0, 0, 0 | NA | NA | 1.55872 | F | F | LBFC opt |
| 20151024_120944 | 0, 0, 0 | NA | NA | 1.67102 | F | F | LBFC opt |
| 20151024_120959 | 0, 0, 0 | NA | NA | 1.86078 | F | F | LBFC opt |
| 20151024_121014 | 0, 0, 0 | NA | NA | 1.76344 | F | F | LBFC opt |
| 20151024_121030 | 0, 0, 0 | NA | NA | 1.73276 | F | F | LBFC opt |
| 20151024_121045 | 0, 0, 0 | NA | NA | 1.92377 | F | F | LBFC opt |
Hip28711
5:15: we repoint the telescope, we were below 55deg elevation... 5:18: spotters ready for launch 5:20: LAT correction arrived, LGS on PatCams:| TN | AO Gain | Res. WF [nm rms] | AO rec | DIMM ["] | JCL | PCL | Notes |
|---|---|---|---|---|---|---|---|
| 20151024_121357 | 0, 0, 0 | NA | NA | 1.90818 | T | F | Auto |
| 20151024_121416 | 0, 0, 0 | NA | NA | 2.12902 | T | F | Auto |
| 20151024_121434 | 0, 0, 0 | NA | NA | 2.03052 | T | F | Auto |
| 20151024_121452 | 0, 0, 0 | NA | NA | 2.30217 | T | F | Auto |
| 20151024_121510 | 0, 0, 0 | NA | NA | 2.4463 | T | F | Auto |
| 20151024_121528 | 0, 0, 0 | NA | NA | 2.40329 | T | F | Auto |
| 20151024_121546 | 0, 0, 0 | NA | NA | 2.24628 | T | F | Auto |
TipTiltSystemSx calibrations
We find the pennina spot:| Board | -75 | -51 | 45 |
|---|---|---|---|
| Cube | stage = -1 | rotator = 92deg |
| DT [s] | N. of frames | Counts |
|---|---|---|
| 0.1 | 10 | 0.8; 1.2; 1.6; 3.0 |
| 1.0 | 100 | 1.8; 3.41; 2.26; 2.60 |
| 10 | 1k | 1.204; 2.270; 1.878; 2.300 |
| 100 | 10k | 1.32; 2.15; 1.78; 2.28 |
| 1000 | 100k | 1.18; 2.15; 1.73; 2.25 |
| Board | -75.7 | -51.3 | 0 |
|---|---|---|---|
| Cube | stage = -1 | rotator = 91.471deg |
| Board | -75.7 | -51.5 | 0 |
|---|
-- MarcoBonaglia - 28 Oct 2015
Edit | Attach | Print version | History: r4 < r3 < r2 < r1 | Backlinks | View wiki text | Edit wiki text | More topic actions
Topic revision: r4 - 30 Oct 2015, MarcoBonaglia
APE
Copyright © by the contributing authors. All material on this collaboration platform is the property of the contributing authors. Ideas, requests, problems regarding AOWiki? Send feedback
