We install the external laser source on the Red arm.

10:00 Micheal Wagner disconnects the accelerometer board on the DX ASM.

Acceptance test positions for the Red arm:

Motors X Y
Red 393 582
Piezos Rx Ry
Red -1 -3

We recenter the pupil on the actual subaperture pattern:

Motors X Y
Red 383 658
Piezos Rx Ry
Red -4 0

We perform the PockelsCellTest on the Red arm.

Check of the BCU serial tip-tilt communication and FLAO communication

Fastlink to ASM disable.

The following framerate are tested:
  • PnCCD : [971, 750, 500]
  • TipTilt (serial) : [999, 971, 750, 500]
  • FLAO : [971.7, 250]
See bcu_communications.tar for the full set of plots.

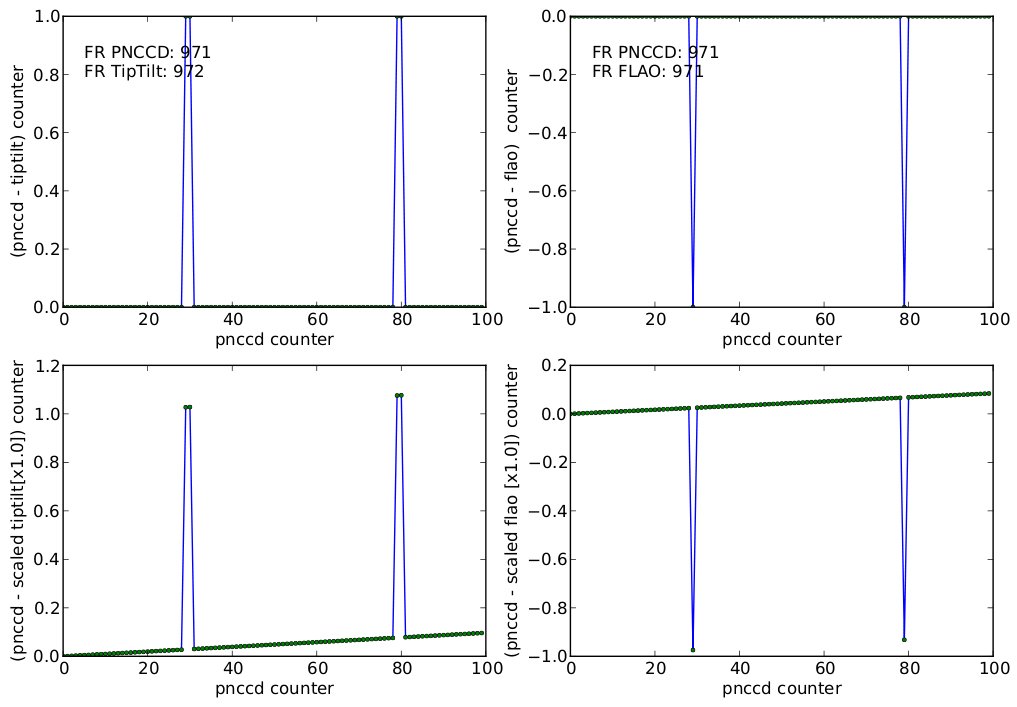

Here are an example for 100 diagnostics frames.
