Visual Inspection

11:00: telescope back to Zenith, we climb and check the racks: fine. The pressure gauge on SX-PNCCD had low battery. We pumped it anyway up to 0.45mbar. BcuNumber1 installed on LgswRack2.

12:00: LgswUnitSx switched on step by step: first PnCCD, then BCU then Patrol cameras then homed motors and dark wheel. PCD is OFF. Light with internal diodes seems fine.

We switch to external source: we do not see any big feature in illumintating the LGSW with the cal source.

12:40: PCD switched on, system restarted from AARB.

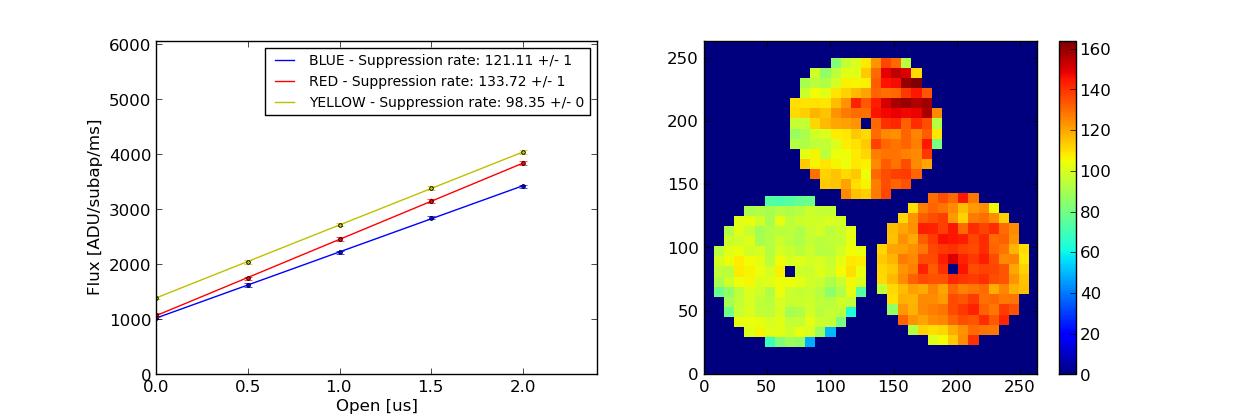

SX PockelsCellsTransmission test

TNs Plot
SX: ['20161012_195304', '20161012_195424'] 20161012_195304_pcTransmission.jpg

LgswUnitSx CL test

13:00: we try to close the loop with LGSW only, from AARB we arrive to launch but we get a problem with the ICE connection

2016-10-12 20:22:16.459340057 NOTICE IceObservationArbitrator: Got request for presetAO
2016-10-12 20:22:16.460404173 NOTICE Arbitrator: Starting preset AO (PresetAoRequest(aoMode= 'TRUTH',instr= 'LUCIFER',focStation= 'bentGregorianArgos',wfs= 'argos',soCoordsInMillimeter= [1.0, 2.0],roCoordsInMillimeter= [0.0, 0.0],elevationInRadians= 3.0,rotAngleInRadians= 5.0,gravAngleInRadians= 7.0,mag= 10.0,color= 13.0,r0= 17.0,skyBrghtn= 19.0,windSp= 23.0,windDir= 29.0))...
2016-10-12 20:22:16.461282533 NOTICE FysomStateMachine: Event LAUNCH triggered transition from READY_TO_CALIBRATE_ON_CAL_SOURCE to LAUNCHING_ON_CAL_SOURCE
2016-10-12 20:22:17.378296962 NOTICE IcePyramidWfs: Connecting to service with end point wfsarb.L:tcp -p 15008 -h 192.168.39.56 ...
2016-10-12 20:22:17.824637747 NOTICE Foreman: Preparing for acquisition
2016-10-12 20:22:17.827035765 NOTICE Foreman: ForemanConfiguration updated to ForemanConfiguration(combinedReconstructorTag= '20151212_220700',lightSourceType= 'Calibration source diodes',tipTiltSensorType= 'none',useHighOrderModes= True,tipTiltIntegrationTimeInMicrosec= 1000,apertureWheelPositionIndex= 1,truthSensorIntegrationTimeInSeconds= 1.0)
2016-10-12 20:22:17.828402733 NOTICE Foreman: Setting lgsw subap definition
2016-10-12 20:22:17.839757200 NOTICE Foreman: Setting gain vector
2016-10-12 20:22:17.841176226 NOTICE AoLoop: Loading gain vector on AdSec ...
2016-10-12 20:22:17.842616139 NOTICE adsec: Connecting to Adsec ICE service ...
2016-10-12 20:22:17.844348177 ERROR FysomStateMachine: Ice.ConnectionRefusedException:
2016-10-12 20:22:17.844348177 ERROR Connection refused
2016-10-12 20:22:17.845048019 ERROR IceObservationArbitrator: Ice.ConnectionRefusedException:
2016-10-12 20:22:17.845048019 ERROR Connection refused
2016-10-12 20:22:18.058205481 NOTICE adsec: Connecting to Adsec ICE service ...
2016-10-12 20:22:18.063372092 ERROR BlockingTask:non-blocking condition 'Adsec shell rip': 'perform' failed: Ice.ConnectionRefusedException:
2016-10-12 20:22:18.063372092 ERROR Connection refused

The above problem was caused by the wrong Centos configuration in our argos.idx

Currently on both Adsec and WfsSx are running Centos 5.6 so we had to move the config line to that (in May apparently they were running Centos 6)...

14:00: telescope to horizon to refill LBCs.

14:30: telescope to zentih we deploy cal source and dichroic.

We resume the test of LgswUnitSx: we close the loop with LGSW only, NO disturb (first 2 snaphots in table below).

SX HEXAPOD 4.34 0.87 -0.36 146 -8
Then we add 1" disturb, cal source diodes are at 100mA.

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Plot
20161012_214229 0.5,0.5,0.4 T 102.404 55.7035 20151212_220700 -1 F F 20161012_214229-20161012_214720_modalplot.png
20161012_214333 0.5,0.5,0.4 T 104.039 56.6367 20151212_220700 -1 F F
20161012_214542 0.5,0.5,0.4 T 108.24 81.34 20151212_220700 -1 F F
20161012_214720 0.5,0.5,0.4 T 129.309 81.51 20151212_220700 -1 F F
Then we move to test the Pyramid as TT sensor. The nominal launch position is at [-77.5; -49.1]mm we measure the best position to be [-71.9; -49.1]mm. Before to launch it is worthwhile to add an offset of [-6.0; 0.0]mm.

We close on PYR, after 1min BCU stacks...

We disconnect the Adsec fibers to the 50/50 splitter (LIU-0605-1-5)

  • The TS is misconfigured: KL_v18 was not set in the .CUR, we had to put it by hand...

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Plot
20161012_232505 0.2,0.1,0.05 T 134.51 34.9148 20151212_233600 -1 T F 20161012_232505-20161012_232523_modalplot.png
20161012_232523 0.2,0.1,0.05 T 131.765 35.1908 20151212_233600 -1 T F
We close the loop adding a 1" disturb:

TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Plot
20161012_232729 0.2,0.1,0.05 T 93.1108 211.949 20151212_233600 -1 T F 20161012_232729-20161012_233221_modalplot.png
20161012_233205 0.2,0.1,0.05 T 114.714 224.617 20151212_233600 -1 T F
20161012_233221 0.2,0.1,0.05 T 111.064 234.725 20151212_233600 -1 T F

Too low gain we rise it...
TN AO Gain AO CL TT Res. WF [nm rms] HO Res. WF [nm rms] AO rec DIMM ["] JCL PCL Plot
20161012_233726 1,0.4,0.3 T 40.92 87.4233 20151212_233600 -1 T F 20161012_233726-20161012_233933_modalplot.png
20161012_233738 1,0.4,0.3 T 39.2059 85.7643 20151212_233600 -1 T F
20161012_233817 1,0.4,0.3 T 42.4767 89.6569 20151212_233600 -1 T F
20161012_233854 1,0.3,0.2 T 42.1683 107.889 20151212_233600 -1 T F
20161012_233913 1,0.3,0.2 T 40.8783 106.101 20151212_233600 -1 T F
20161012_233933 1,0.3,0.2 T 39.9131 106.549 20151212_233600 -1 T F
20161012_234107 1.5,0.5,0.35 T 46.9537 111.912 20151212_233600 -1 T F 20161012_234107-20161012_234151_modalplot.png
20161012_234134 1.5,0.5,0.35 T 47.8184 114.737 20151212_233600 -1 T F
20161012_234151 1.5,0.5,0.35 T 51.2875 123.91 20151212_233600 -1 T F

Laser Power Measurement

SX Head Calorimeter Field Cam
Laser 1 #3 14.951 14.15
Laser 2 #2 17.032 17.05
Laser 3 #8 14.067 13.60
DX
Laser 1 #1 15.029 15.5
Laser 2 #5 13.0 12.7
Laser 3 #6 13.6 16.2
