DX side
New Hexapod positions after coma removal:
DX HEXA |
-1.60 |
-4.18 |
1.18 |
181.5 |
79 |
We try to measure the
FoV of the LGSW:
Wrt the 0 position the 3 WFS
FoVs and the corresponding piezo zero positions are:
WFS |
Rx |
Ry |
PI x |
PI y |
Blue |
-3.5 |
-1 |
-1.7 |
4.0 |
Yellow |
0 |
0 |
4.4 |
1.2 |
Red |
-1 |
-3 |
-1.5 |
2.7 |
The piezo positions have been saved into:
- Jitter initial position: 20161018_223300
Finally Cal unit flux problem is fixed: the Yellow fiber was misconnected...
We re-position the motors to best fit the pupils...
We try also to close the ao loop using subaps: 20160312_213700 and REC LGSW only: 20160520_011800 but the shell crashes all the times we enable the slopes transmission...
Then while taking sky flats we try the new jitter initial position:
TN |
Jitter pos |
JCL |
20161019_004543 |
zero |
F |
20161019_004653 |
20161018_223300 |
F |
20161019_004742 |
- |
20161019_005017 |
T |
- New Jitter initial position in jitter loop closed on sky flat: 20161019_005017

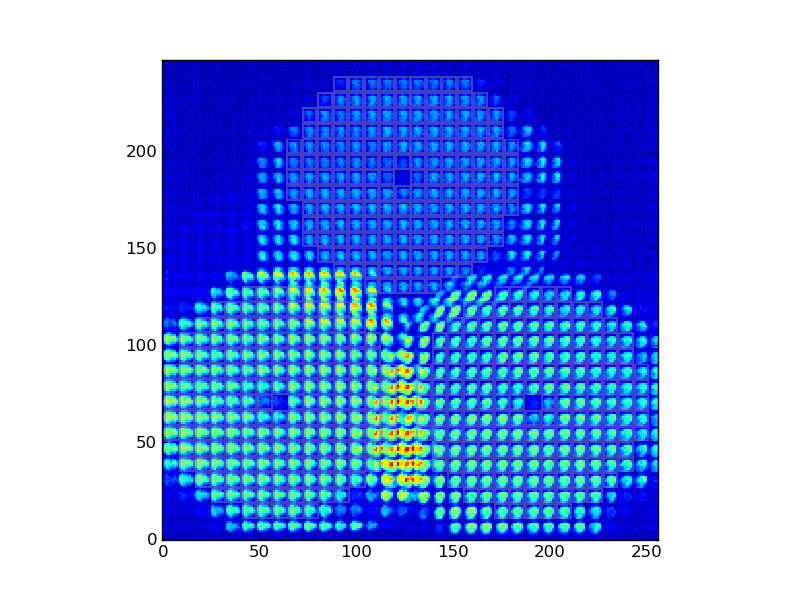

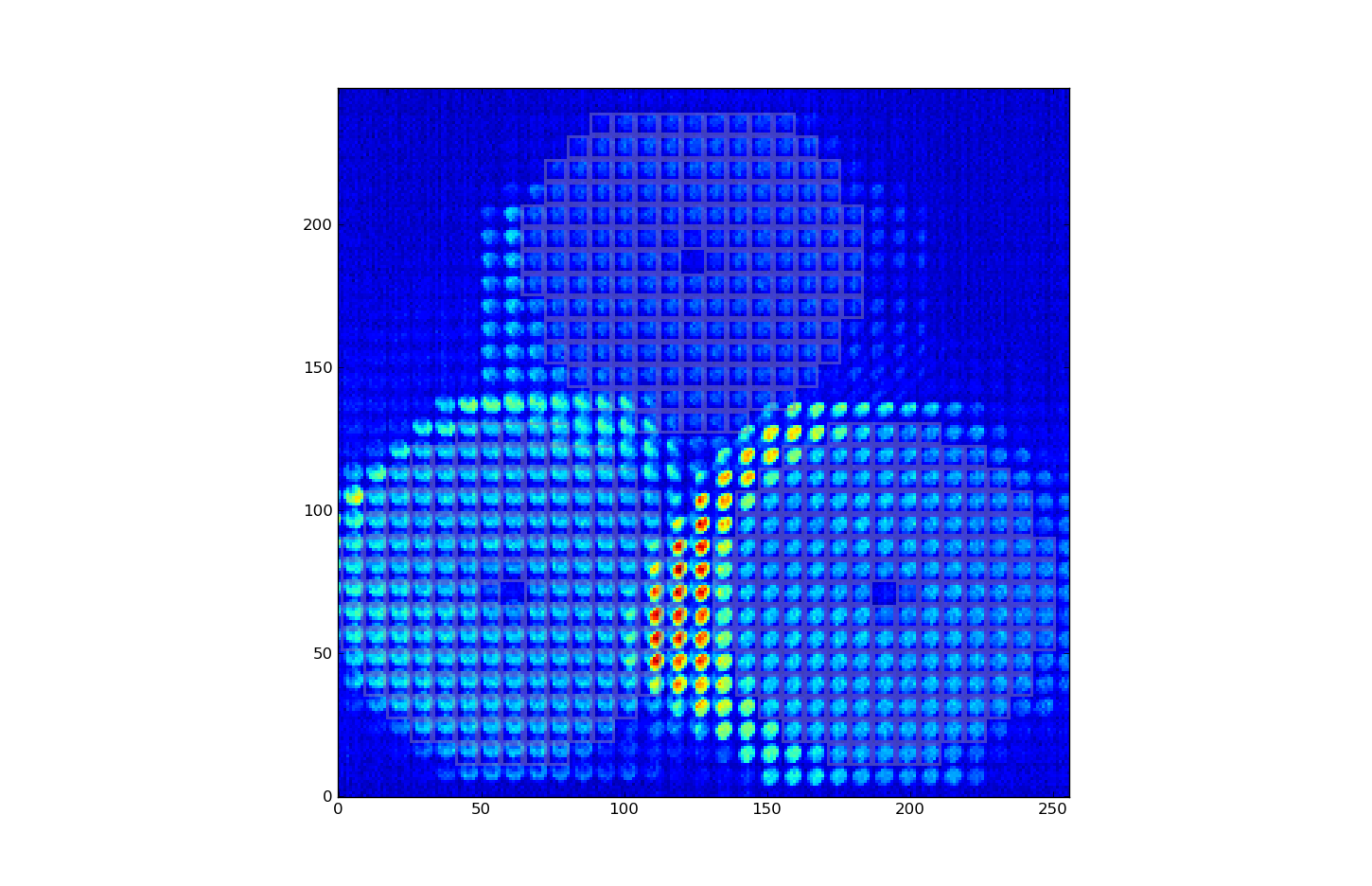

As shown in the pictures below the sky-flat is very valuable to measure the jitter inital position and to properly center the field stop in the subaperture... In principle it can be used also to match the central obstruction on the central subaperture
SX side
New Hexapod position after Coma Correction:
SX HEXA |
4.42 |
2.75 |
-0.3 |
-45 |
10 |
0 |
Flux measures on NGS WFSs
~0.6" disturbance, White Light Source (WLS) 55-56 steps and we move the Z stage of the Pyr WFS to get a bigger NGS spot. 10 millimeter of Z board are ~1" in spot dimension.
APD measures:
TN |
AO Gain |
AO CL |
TT Res. WF [nm rms] |
HO Res. WF [nm rms] |
AO rec |
JCL |
Z stage [mm] |
APD kcounts/s |
20161018_222523 |
0.1,0.5,0.4 |
T |
1623.42 |
58.9876 |
20161014_235200 |
T |
42 |
12 |
20161018_222728 |
0.1,0.5,0.4 |
T |
1515.2 |
57.3217 |
20161014_235200 |
T |
47 |
13 |
20161018_222743 |
0.1,0.5,0.4 |
T |
1562.91 |
57.292 |
20161014_235200 |
T |
47 |
13 |
20161018_222844 |
0.2,0.5,0.4 |
T |
1526.37 |
77.1823 |
20161014_235200 |
T |
47 |
13 |
20161018_222859 |
0.2,0.5,0.4 |
T |
1526.54 |
77.7343 |
20161014_235200 |
T |
47 |
13 |
20161018_222929 |
0.25,0.5,0.4 |
T |
1597.81 |
96.2808 |
20161014_235200 |
T |
47 |
13 |
20161018_222942 |
0.25,0.5,0.4 |
T |
1576.44 |
96.8694 |
20161014_235200 |
T |
47 |
13 |
20161018_223013 |
0.05,0.5,0.4 |
T |
1625.75 |
51.9799 |
20161014_235200 |
T |
47 |
13 |
20161018_223025 |
0.05,0.5,0.4 |
T |
1674.17 |
52.1886 |
20161014_235200 |
T |
47 |
13 |
20161018_223054 |
0.15,0.5,0.4 |
T |
1472.08 |
65.5364 |
20161014_235200 |
T |
47 |
13 |
20161018_223112 |
0.15,0.5,0.4 |
T |
1486.67 |
64.01 |
20161014_235200 |
T |
47 |
13 |
20161018_223202 |
0.15,0.5,0.4 |
T |
1357.91 |
62.9677 |
20161014_235200 |
T |
52 |
14 |
20161018_223222 |
0.15,0.5,0.4 |
T |
1380.78 |
64.5554 |
20161014_235200 |
T |
52 |
14 |
20161018_223330 |
0.25,0.5,0.4 |
T |
1446.67 |
90.1759 |
20161014_235200 |
T |
52 |
14 |
~0.6" disturbance, White Light Source (WLS) 56 steps. Pyramid
~0.6" disturbance, White Light Source (WLS) 56 steps. APD
TN |
AO Gain |
AO CL |
TT Res. WF [nm rms] |
HO Res. WF [nm rms] |
AO rec |
JCL |
Z stage [mm] |
APD kcounts/s |
20161018_225120 |
0.1,0.5,0.4 |
T |
1396.49 |
58.7174 |
20161014_235200 |
T |
41.5 |
15 |
20161018_225141 |
0.1,0.5,0.4 |
T |
1407.44 |
58.6471 |
20161014_235200 |
T |
41.5 |
15 |
20161018_225213 |
0.1,0.5,0.4 |
T |
1445.54 |
59.5002 |
20161014_235200 |
T |
46.5 |
15 |
20161018_225226 |
0.1,0.5,0.4 |
T |
1426.44 |
58.5241 |
20161014_235200 |
T |
46.5 |
14 |
20161018_225257 |
0.1,0.5,0.4 |
T |
1374.41 |
57.4283 |
20161014_235200 |
T |
51.5 |
16 |
20161018_225311 |
0.1,0.5,0.4 |
T |
1361.8 |
59.3718 |
20161014_235200 |
T |
51.5 |
15 |
The zero point is zpt= 25.4.
We cannot dark the dome for these new measures with a different WLS aperture. WLS=60 step.
TN |
AO Gain |
AO CL |
TT Res. WF [nm rms] |
HO Res. WF [nm rms] |
AO rec |
JCL |
Z stage [mm] |
APD kcounts/s |
20161019_000759 |
0.1,0.5,0.4 |
T |
991.6 |
46.2976 |
20161014_235200 |
T |
41.5 |
39 |
20161019_000811 |
0.1,0.5,0.4 |
T |
991.763 |
45.6126 |
20161014_235200 |
T |
41.5 |
39 |
20161019_000848 |
0.1,0.5,0.4 |
T |
1018.37 |
45.6614 |
20161014_235200 |
T |
46.5 |
40 |
20161019_000900 |
0.1,0.5,0.4 |
T |
962.628 |
45.1439 |
20161014_235200 |
T |
46.5 |
40 |
20161019_000926 |
0.1,0.5,0.4 |
T |
1511.9 |
48.764 |
20161014_235200 |
T |
51.5 |
50 |
20161019_000938 |
0.1,0.5,0.4 |
T |
1285.13 |
48.0654 |
20161014_235200 |
T |
51.5 |
50 |
We cannot move the Z board over 52mm so we repeat the measures starting from 52 and going down.
TN |
AO Gain |
AO CL |
TT Res. WF [nm rms] |
HO Res. WF [nm rms] |
AO rec |
DIMM ["] |
JCL |
PCL |
Notes |
20161019_001408 |
0.1,0.5,0.4 |
T |
886.51 |
46.252 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001422 |
0.1,0.5,0.4 |
T |
981.038 |
44.6694 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001433 |
0.1,0.5,0.4 |
T |
1002.24 |
46.2966 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001515 |
0.1,0.5,0.4 |
T |
1158.11 |
45.3891 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001527 |
0.1,0.5,0.4 |
T |
918.71 |
44.3689 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001602 |
0.1,0.5,0.4 |
T |
681.306 |
42.4647 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001613 |
0.1,0.5,0.4 |
T |
669.312 |
43.2143 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001639 |
0.1,0.5,0.4 |
T |
617.674 |
48.9677 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001704 |
0.1,0.5,0.4 |
T |
612.004 |
42.7824 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001730 |
0.1,0.5,0.4 |
T |
609.845 |
43.0749 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001741 |
0.1,0.5,0.4 |
T |
586.443 |
43.0339 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001811 |
0.1,0.5,0.4 |
T |
611.543 |
47.595 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001826 |
0.1,0.5,0.4 |
T |
598.701 |
42.804 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001851 |
0.1,0.5,0.4 |
T |
604.846 |
57.4381 |
20161014_235200 |
-1 |
T |
F |
|
20161019_001904 |
0.1,0.5,0.4 |
T |
596.215 |
49.9263 |
20161014_235200 |
-1 |
T |
F |
|
